Heavy Duty Rack Kit — Catalogue Page 4.1.3







PART NUMBER

RFM-RHD-KIT


PART DESCRIPTION

Converts Standard Rack To Heavy Duty Rack

note: 3" caster sets available - installs easily to RFM-RHD-KIT

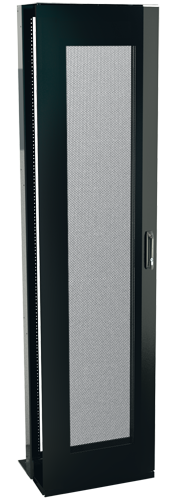

Rack Doors — Catalogue Page 4.1.4





PART NUMBER

RFM-RD-19
RFM-RD-19-P

PART DESCRIPTION

Rack Door — Solid — Fits onto 19"EIA x 44U Racking
Rack Door — Perf. — Fits onto 19"EIA x 44U Racking

Rack Mount Security Doors— Catalogue Page 4.1.5





PART NUMBER

RFM-RD-19-1-6U
RFM-RD-19-1-10U
RFM-RD-19-1-13U

RFM-RD-19-P-6U
RFM-RD-19-P-10U
RFM-RD-19-P-13U

PART DESCRIPTION

Smoked Acrylic Door, 6U Height
Smoked Acrylic Door, 10U Height
Smoked Acrylic Door, 13U Height


Perforated Door, 6U Height
Perforated Door, 10U Height
Perforated Door, 13U Height

Reducer Plates — Catalogue Page 6.2.3





PART NUMBER

RFM-2419-1-RP
RFM-2419-2-RP
RFM-2419-4-RP
RFM-2419-11-RP

RFM-2319-1-RP
RFM-2319-2-RP
RFM-2319-4-RP
RFM-2319-11-RP

PART DESCRIPTION

Reducer Plates 24" EIA to 19" EIA - 1U / Pair
Reducer Plates 24" EIA to 19" EIA - 2U / Pair
Reducer Plates 24" EIA to 19" EIA - 4U / Pair
Reducer Plates 24" EIA to 19" EIA - 11U / Pair

Reducer Plates 23" EIA to 19" EIA - 1U / Pair
Reducer Plates 23" EIA to 19" EIA - 2U / Pair
Reducer Plates 23" EIA to 19" EIA - 4U / Pair
Reducer Plates 23" EIA to 19" EIA - 11U / Pair


note: additional lengths available on request
Blank Filler Plates [Composite Material] — Catalogue Page 6.2.2





PART NUMBER

RFM-BPTL-19-1U
RFM-BPTL-19-2U

PART DESCRIPTION

19" EIA Mount 1U Height
19" EIA Mount 2U Height

Composite material, tool-less, easy 'snap in' installation.

Blank Filler Plates [Steel] — Catalogue Page 6.2.2





PART NUMBER

RFM-BP19-1U
RFM-BP19-2U
RFM-BP19-4U
RFM-BP19-9U

PART DESCRIPTION

19" EIA Mount 1U Height, Steel
19" EIA Mount 2U Height, Steel
19" EIA Mount 4U Height, Steel
19" EIA Mount — 9U Height, Steel

Note: 23" Mount available for Steel filler plates, on request

Server Support Brackets — Catalogue Page 6.2.4





PART NUMBER

RFM-UPS-4PKT-FLM
PART DESCRIPTION

Provides 4 Point Support For Equipment Sold In Pairs


Grounding Bars [Vertical & Horizontal] — Catalogue Page 1.5.8





PART NUMBER

RFM-GBR-83
RFM-GBR-83
RFM-GBR-72
RFM-GBR-48

RFM-HGB-19

PART DESCRIPTION

Vert. mnt. copper bar 1"w x 3/16" thick — fits 48U Racks
Vert. mnt. copper bar 1"w x 3/16" thick — fits 44U Racks
Vert. mnt. copper bar 1"w x 3/16" thick — fits 38U Racks
Vert. mnt. copper bar 1"w x 3/16" thick — fits 24U Racks

Horiz. mount copper bar 1"w x 3/16"thick — 19" EIA Mount

Grounding Kit — Catalogue Page 6.1.3





PART NUMBER

RFM-GRD-KIT

PART DESCRIPTION

Kit c/w 2 Assemblies and accommodates 2 doors.
Each assembly consists of:
• 2 x 10 Awg Wire
• 16” Cable Length (0.406 M) (Each Cable)
• 2 x 1/4” Crimped Lug Connectors (1 Eye Hole)
• 1 x m/f 250 Disconnect


Jumper Kit — Catalogue Page 6.1.3





PART NUMBER

RFM-JK-60

PART DESCRIPTION

Kit assembly consists of:
• 6 Awg Wire
• 60” Cable Length (1.54 M)
• Crimped One End: 1/4” Lug Connector
   (45 Degree Angle, 2 Eye Holes)

Caster Sets [For Racks]



PART NUMBER

RFM-3C-RHD


PART DESCRIPTION

Caster Sets For RFM Series Four Post Rack Kits

RFM Series Rack Caster Sets Incl.:
• 4 x Swivel-Type Non-Locking Caster, 3" Diameter
• Hardware kit to Attach Casters Directly To Rack Base
   (or Heavy Duty Rack Kit)

note: 3" caster sets are rated for up to 750 LBS static load

Cagenut, Tapped, And Ganging Hardware Packages


PART NUMBER

RFM-CN
RFM-CN100
RFM-CN10-32
RFM-CN10-32100

RFM-10-32


PART DESCRIPTION

Qty 24 x 1/4-20 Cage Nuts and 3/4" Screws
Qty 100 x 1/4-20 Cage Nuts and 3/4" Screws
Qty 24 x #10-32 Cage Nuts and 1/2" Screws
Qty 100 x #10-32 Cage Nuts and 1/2" Screws

Qty 100 x #10-32 x 1/2" Screws
