Pre-Configured Wall Mount Cabinet

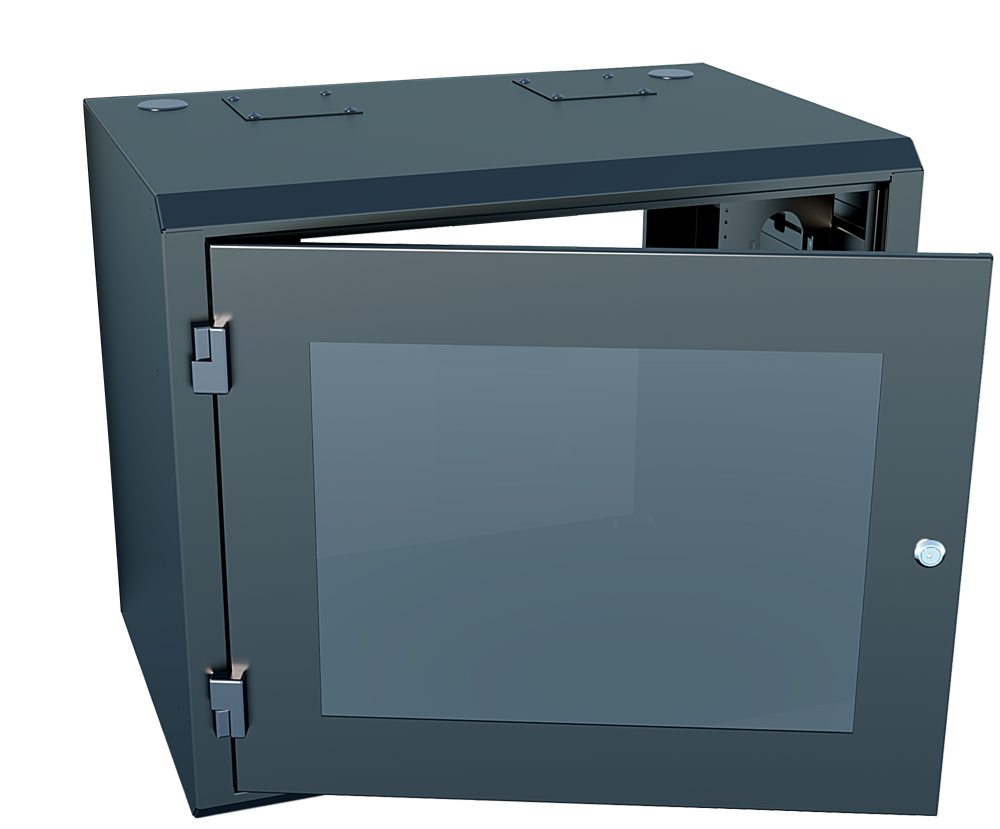

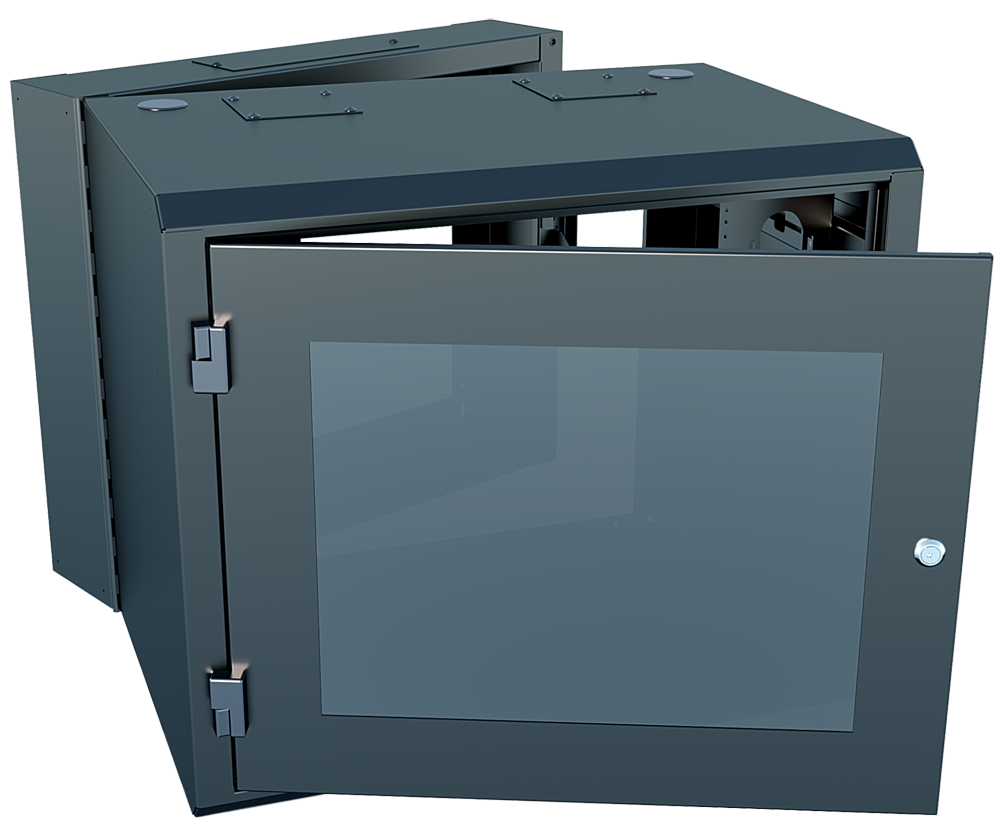

30" wide wall mount cabinet — shown with optional 6" cabinet extender |
| CONFIGURED CABINETS |
|||||
| PART NUMBER |
WIDTH | DEPTH | HEIGHT | RU's | USABLE D |
| RFM-3022-WM-20 |
30.120 | 20.40 | 22.25 | 10U | 18.00 |
| RFM-3036-WM-20 |
30.120 | 20.40 | 36.00 | 18U | 18.00 |
| RFM-3048-WM-20 |
30.120 | 20.40 | 48.00 | 25U | 18.00 |
| CABINET DEPTH EXTENDERS |
|||||
| PART NUMBER |
WIDTH | DEPTH | HEIGHT | RU's | USABLE D |
| RFM-3022-WM-6X |
30.125 | 6.00 | 22.25 | 10U | 6.00 |
| RFM-3036-WM-6X |
30.125 | 6.00 | 36.00 | 18U | 6.00 |
| RFM-3048-WM-6X |
30.125 | 6.00 | 48.00 | 25U | 6.00 |
RFM Wall Mount Cabinets provides a sturdy, cost-effective solution for supporting rack-mountequipment in data centers, computer equipment rooms and other IT facilities. Load capacity is 300LBS.
• Quick Reference Page: [EN] [FR]
• Product Data Sheet
OPTIONS FOR CABINETSMounting Rails
| PART NUMBER |
DESCRIPTION |
| RFM-3022-WM-20-MA |
Mounting angle for 22.25"H WM Cabinet |
| RFM-3036-WM-20-MA |
Mounting angle for 36.00"H WM Cabinet |
| RFM-3048-WM-20-MA |
Mounting angle for 48.00"H WM Cabinet |
Mounting Angles are sold in pairs.• Product Data Sheet
Cabinet Cable Manager
| PART NUMBER |
DEPTH |
HEIGHT |
| RFM-322-VCM |
4.25 | 21.00 |
| RFM-336-VCM |
4.25 | 35.00 |
| RFM-348-VCM |
4.25 | 47.00 |

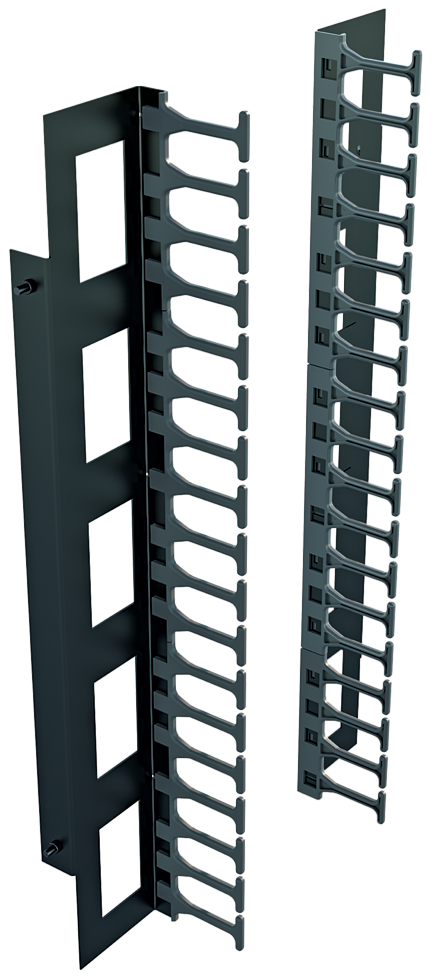

Vertical Cable Manager for RFM Wall Mount Cabinets.• Product Data Sheet
ACCESSORIES FOR CABINETSFinger Style Cable Managers - Horizontal
| PART NUMBER |
DEPTH | RU'S |
| RFM2-191-HCM-F |
4.38 | 1U |
| RFM2-192-HCM-F |
4.38 | 2U |
| RFM2-193-HCM-F |
4.38 | 3U |
Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers
are available in 1U, 2U, and 3U spacing and feature removable door.
Cable Managers - Horizontal
| PART NUMBER |
DEPTH |
RU'S |
| RFM-191D-HCM |
2.40 | 1U |
| RFM-192D-HCM-TD |
2.40 | 2U |
| RFM-194D-HCM-TD |
2.40 | 4U |
Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers
are available in 1U, 2U, and 4U spacing and feature removable door.
• Product Data Sheet
Finger Style Cable Managers - Horizontal
| PART NUMBER |
DEPTH |
RU'S |
| RFM-191D-HCM-F |
3.00 | 1U |
| RFM-192D-HCM-F |
3.00 | 2U |
Manage all of your network cabling neatly, regardless of cable volumes. These fingered
horizontal managers are available in 1U and 2U spacing and feature removable door.
• Product Data Sheet
Cable Managers - Horizontal
| PART NUMBER |
DEPTH |
| RFM-0U-HCM-19 |
3.00 |
| RFM-0U-HCM-19-5 |
5.00 |
Manage all of your network cabling neatly, regardless of cable volumes. These horizontal
managers are available in 3" and 5" depths.
• Product Data Sheet
Rack Shelf: Single Sided, Fixed
| PART NUMBER |
DEPTH |
LOAD CAPACITY |
| RFM-1909-RFS |
9.00 |
100LBS |
| RFM-1912-RFS |
12.00 |
100LBS |
| RFM-1915-RFS |
15.00 |
100LBS |
| RFM-1921-RFS |
21.00 |
100LBS |
Shelf Fits: Cabinets and Racks. 19" EIA Rack Mount.
• Product Data Sheet
Fan Assemblies for Wall Mount Cabinets
| PART NUMBER |
FANS | TOTAL AIRFLOW | FITS* |
| RFM-1-FAN |
1 | 110 CFM | 30"W Wall Mount Cabinet |
| RFM-2-FAN |
2 | 220 CFM | 30"W Wall Mount Cabinet |
*This item is for RFM Series Cabinets and Wall Mount Cabinets.
115VAC 50/60HZ 24/22W (Standard per each unit)
(230VAC 50/60HZ available upon request).
LOW PROFILE CABINETSPre-Configured Low Profile Wall Mount Cabinet
Low profile wall mount cabinet — shown with optional 2U extender |
| LOW PROFILE WALL MOUNT CABINET |
|||||
| PART NUMBER |
CABINET WIDTH | CABINET DEPTH | CABINET HEIGHT | MOUNTING DEPTH | RU's |
| RFM-2436-WM-LP-4U |
24.00 | 7.50 | 36.00 | 26.625 | 4U |
| RFM-2436-WM-LP-6U |
24.00 | 11.00 | 36.00 | 26.625 | 6U |
| 2U PATCH PANEL BRACKET |
|||
| PART NUMBER |
DEPTH | HEIGHT | RU's |
| RFM-LP-2U-BRKT |
5.00 | 3.50 | 2U |
RFM Low Profile Wall Mount Cabinets provides a sturdy, cost-effective solution for supporting rack-mount equipment in data centers, computer equipment rooms and other IT facilities.
Optional 2U Patch Panel Brackets (pair) provide an additional 2U of mounting space.
• Quick Reference Page: [EN] [FR]
• Product Data Sheet
