Power Distribution and Grounding
Power Bars
| HORIZONTAL 19" MOUNT POWER BARS | ||
|---|---|---|
| PART NUMBER | # OF OUTLETS | RATED LOAD |
| RFM-19-PBH-8 | 8 (6 REAR, 2 FRONT) | 15 AMPS |
| RFM-19-PBH-20A | 6 | 20 AMPS |
| VERTICAL MOUNT POWER BARS | |||
|---|---|---|---|
| PART NUMBER | # OF OUTLETS | RATED LOAD | LENGTH |
| RFM-48-PBV-18 | 18 | 15 AMPS | 48 |
| RFM-62-PBV-24 | 24 | 15 AMPS | 62 |
| RFM-76-PBVT | 12 | 15 AMPS | 77.5 |
| RFM-62-PBV-20A-24 | 24 | 20 AMPS | 62 |
| RFM-62-PBVT-20A-24 | 24 | 20 AMPS | 62 |
Notes:
- Horiz & Vertical Models - Std. Colour Is Black
- Horiz & Vertical Models - Std. Cord Length Is 15′ (4.57M)
- Horiz Power Bars Also Available In 23″ And 24″ Mounting
- Power Bars do not have On/Off switches
Product Resources
eConnect® PDUs

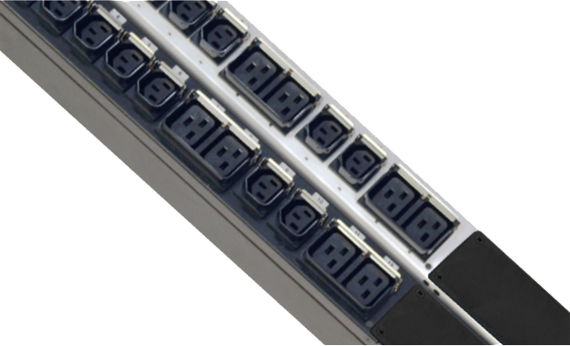

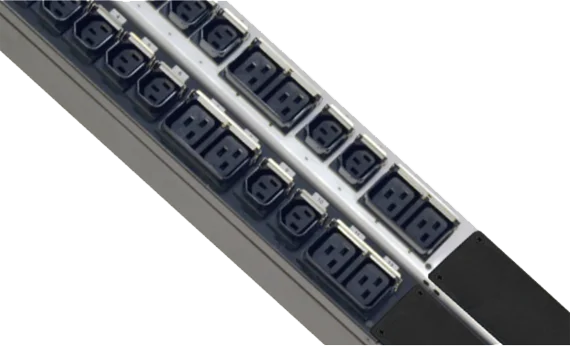

Basic eConnect® PDUs
Basic eConnect® PDUs provide reliable power distribution in high density application where no power monitoring is required.
Product Resources
- [PDF] Product Data Sheet: [DOWNLOAD]

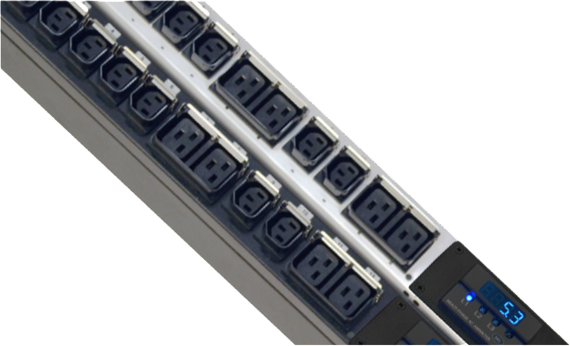

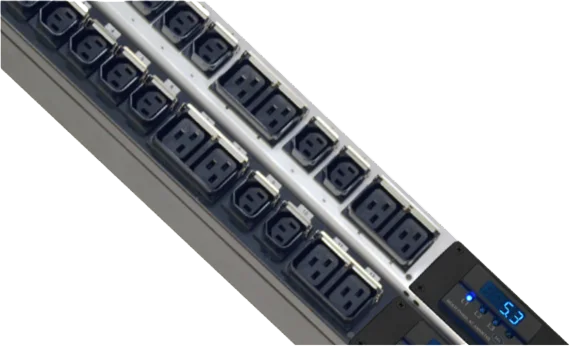

Metered eConnect® PDUs
Metered eConnect® PDUs feature a local display for easy reading of input current to help with initial installation and properly balanced operations.
Product Resources
- [PDF] Product Data Sheet: [DOWNLOAD]

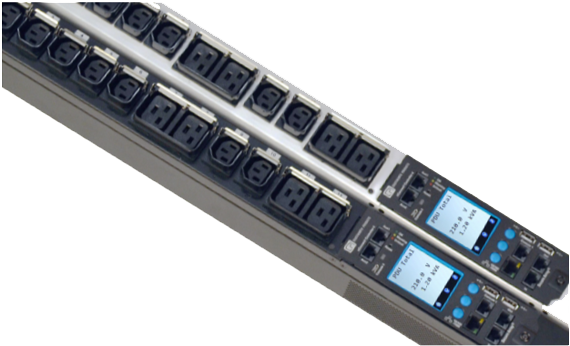

Monitored eConnect® PDUs
Monitored eConnect® PDUs provide remote power monitoring to the input and branch circuit level, making it possible to obtain and manage power consumption at the cabinet level.
Product Resources
- [PDF] Product Data Sheet: [DOWNLOAD]

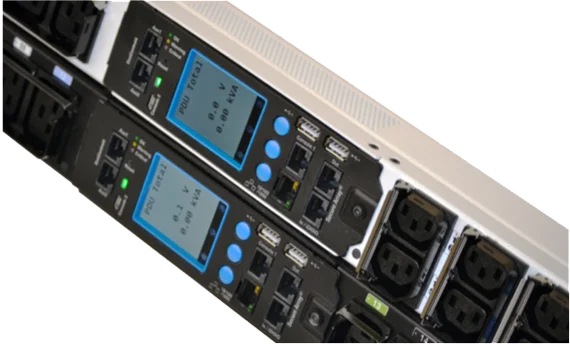

Monitored Pro eConnect® PDUs
Monitored Pro eConnect® PDUs provide remote power monitoring down to the outlet level, making it possible to obtain power consumption for each piece of equipment.
Product Resources
- [PDF] Product Data Sheet: [DOWNLOAD]

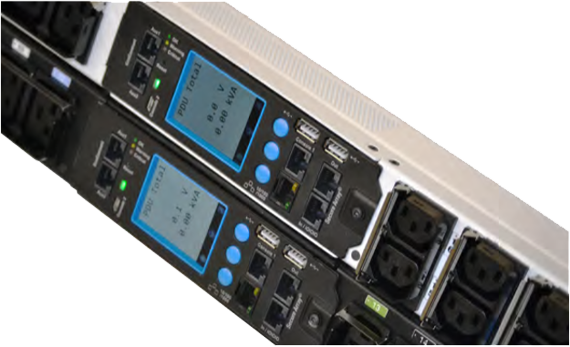

Switched eConnect® PDUs
Switched eConnect® PDUs provide remote monitoring of power at the rack level and individual outlet control, making it possible to remotely turn power on or off at each outlet.
Product Resources
- [PDF] Product Data Sheet: [DOWNLOAD]

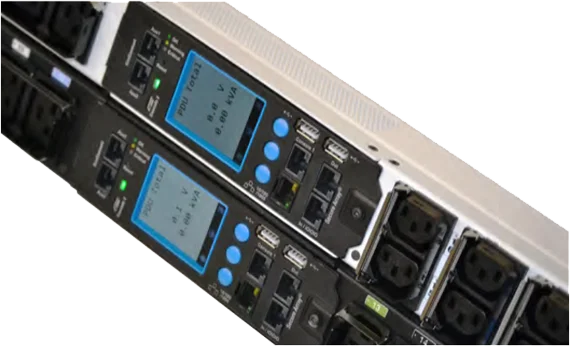

Switched Pro eConnect® PDUs
Switched Pro eConnect® PDUs provide remote power monitoring and control for each outlet on the PDU, making it possible to remotely measure and cycle power for each piece of equipment attached to the PDU.
Product Resources
- [PDF] Product Data Sheet: [DOWNLOAD]
Grounding
Vertical and Horizontal Grounding Bars
| CABINET GROUNDING BARS - VERTICAL MNT. | ||
|---|---|---|
| PART NUMBER | WIDTH | FITS |
| 1.00 | 52U, 48U, 45U | |
| 1.00 | 42U | |
| 1.00 | 30U | |
| 1.00 | 17U | |
| RACK GROUNDING BARS - VERTICAL MOUNT | ||
|---|---|---|
| PART NUMBER | WIDTH | FITS |
| 1.00 | 48U, 44U | |
| 1.00 | 38U | |
| 1.00 | 24U | |
| GROUNDING BARS - HORIZONTAL MOUNT | ||
|---|---|---|
| PART NUMBER | WIDTH | FITS |
| RFM-HGB-19 | 1.00 | 19" EIA |
| THREADED INSULATOR KIT FOR CABINET GB | ||
|---|---|---|
| PART NUMBER | QTY. | USE WITH |
| 4 | RFM2-GB-UNI, RFM2-GB-42 | |
| 3 | ||
| 2 | ||
| THREADED INSULATOR KIT FOR RACK GBR | ||
|---|---|---|
| PART NUMBER | QTY. | USE WITH |
| 3 | ||
| 3 | ||
| 2 | ||
| THREADED INSULATOR KIT FOR HGB-19 | ||
|---|---|---|
| PART NUMBER | QTY. | USE WITH |
| 2 | RFM-HGB-19 | |
Grounding bars for both RFM2 Cabinets or RFM Racks. Isolator kits also listed.
Product Resources
Jumper Kit
| PART NUMBER | LENGTH | WIRE |
|---|---|---|
| RFM-JK-60 | 60" (1.54M) | 6 AWG |
| Kit assembly consists of: |
|---|
| • 6 Awg Wire |
| • 60” Cable Length (1.54 M) |
| • includes (1x) 1/4-20 Keps Nut |
| • includes (1x) #10-32 Keps Nut |
| • Crimped One End: 1/4” Lug Connector (45 Degree Angle, 2 Eye Holes) |
Grounding wire / jumper kit
Product Resources
- [PDF] Product Data Sheet:[DOWNLOAD]
