Pre-Configured Wall Mount Cabinet
Pre-Configured Wall Mount Cabinet (24" and 30" Wide)

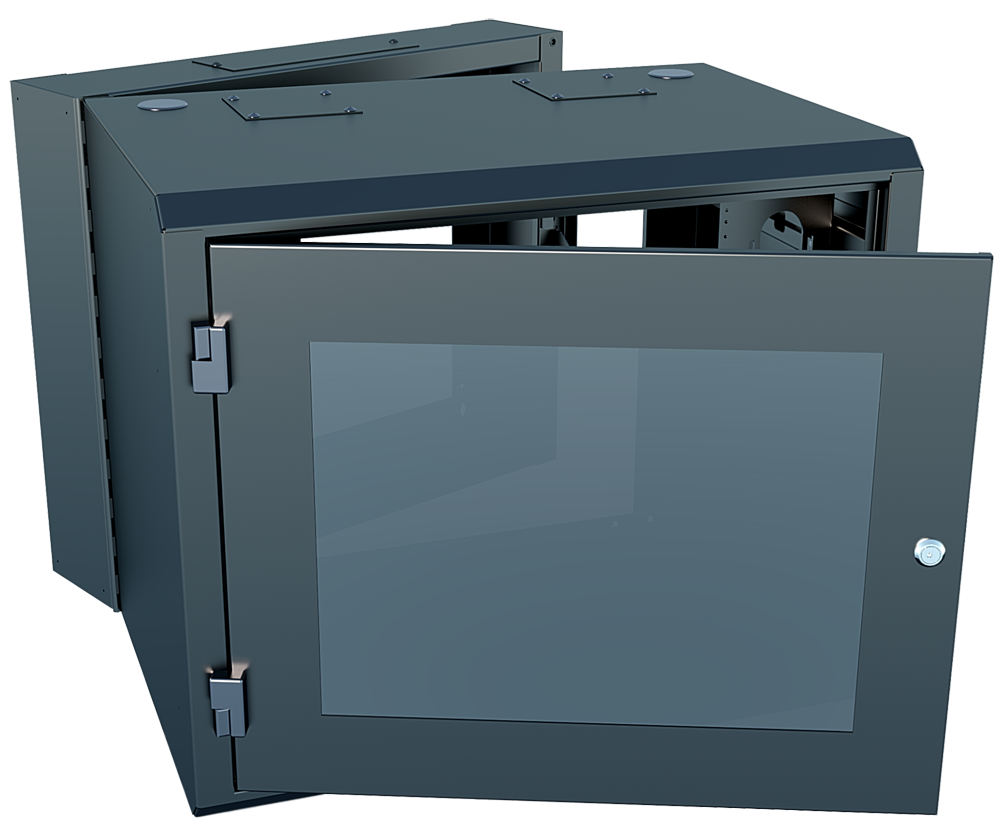

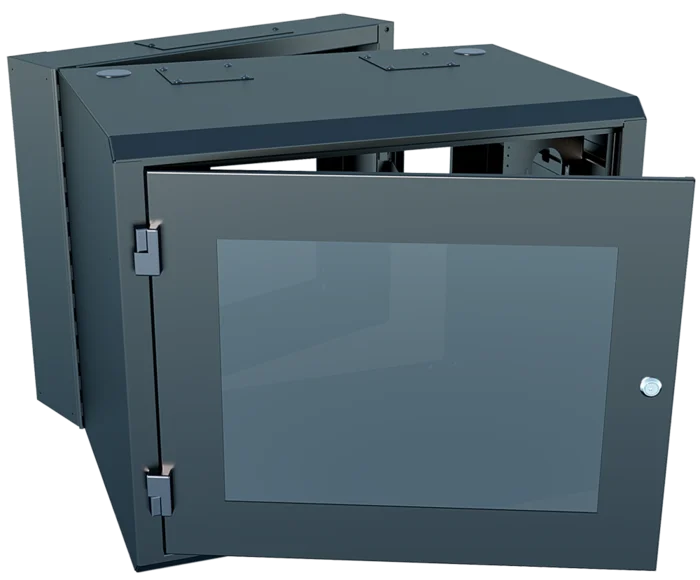

| SWING OUT WALL MOUNT CABINET WITH EXTENDER - BLACK | |||||
|---|---|---|---|---|---|
| PART NUMBER | WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-26X-B | 24" | 12U | 25" | 26" | ACRYLIC |
| RFM-2436-WM-26X-B | 24" | 18U | 36" | 26" | ACRYLIC |
| RFM-2448-WM-26X-B | 24" | 25U | 48" | 26" | ACRYLIC |
| RFM-3025-WM-26X-B | 30" | 12U | 25" | 26" | ACRYLIC |
| RFM-3036-WM-26X-B | 30" | 18U | 36" | 26" | ACRYLIC |
| RFM-3048-WM-26X-B | 30" | 25U | 48" | 26" | ACRYLIC |

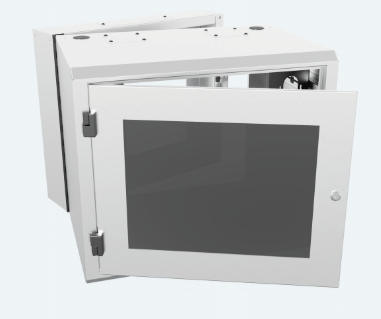

| SWING OUT WALL MOUNT CABINET WITH EXTENDER - WHITE | |||||
|---|---|---|---|---|---|
| PART NUMBER | WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-26X-W | 24" | 12U | 25" | 26" | ACRYLIC |
| RFM-2436-WM-26X-W | 24" | 18U | 36" | 26" | ACRYLIC |
| RFM-2448-WM-26X-W | 24" | 25U | 48" | 26" | ACRYLIC |
| RFM-3025-WM-26X-W | 30" | 12U | 25" | 26" | ACRYLIC |
| RFM-3036-WM-26X-W | 30" | 18U | 36" | 26" | ACRYLIC |
| RFM-3048-WM-26X-W | 30" | 25U | 48" | 26" | ACRYLIC |

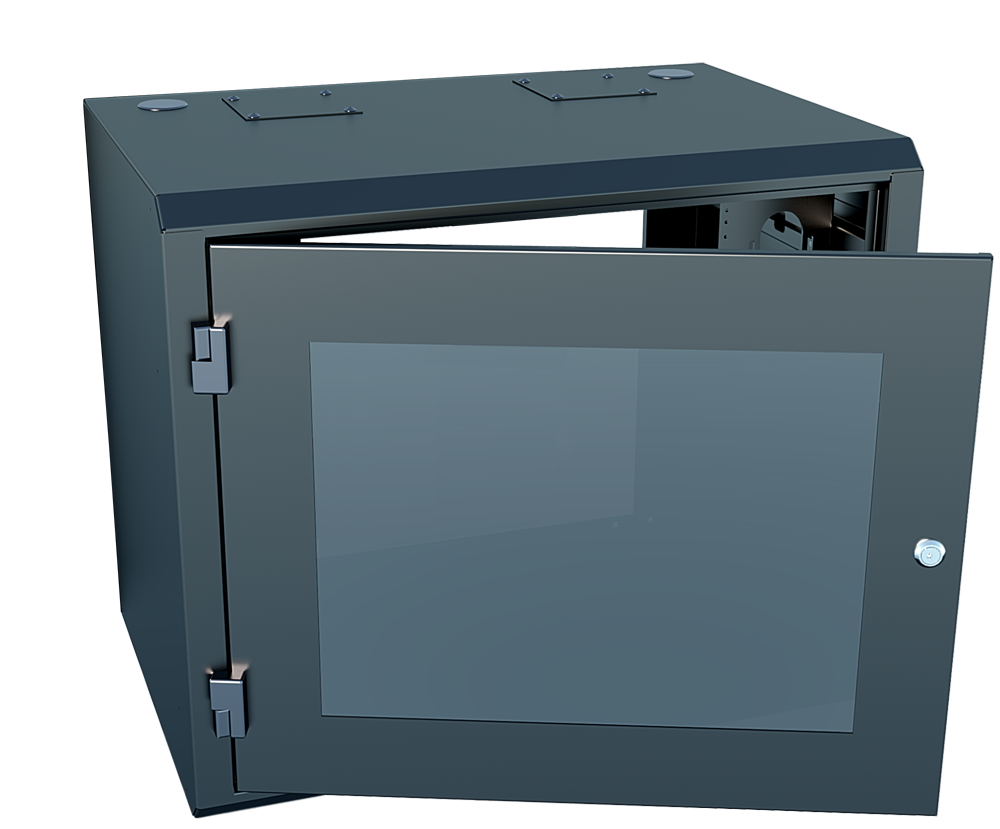

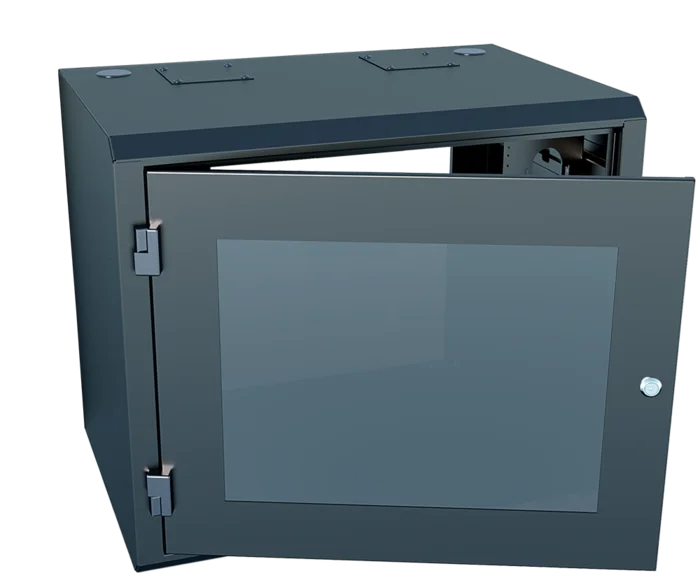

| SWING OUT WALL MOUNT CABINET (NO EXTENDER) - BLACK | |||||
|---|---|---|---|---|---|
| PART NUMBER | WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-20-B | 24" | 12U | 25" | 20" | ACRYLIC |
| RFM-2436-WM-20-B | 24" | 18U | 36" | 20" | ACRYLIC |
| RFM-2448-WM-20-B | 24" | 25U | 48" | 20" | ACRYLIC |
| RFM-3025-WM-20-B | 30" | 12U | 25" | 20" | ACRYLIC |
| RFM-3036-WM-20-B | 30" | 18U | 36" | 20" | ACRYLIC |
| RFM-3048-WM-20-B | 30" | 25U | 48" | 20" | ACRYLIC |

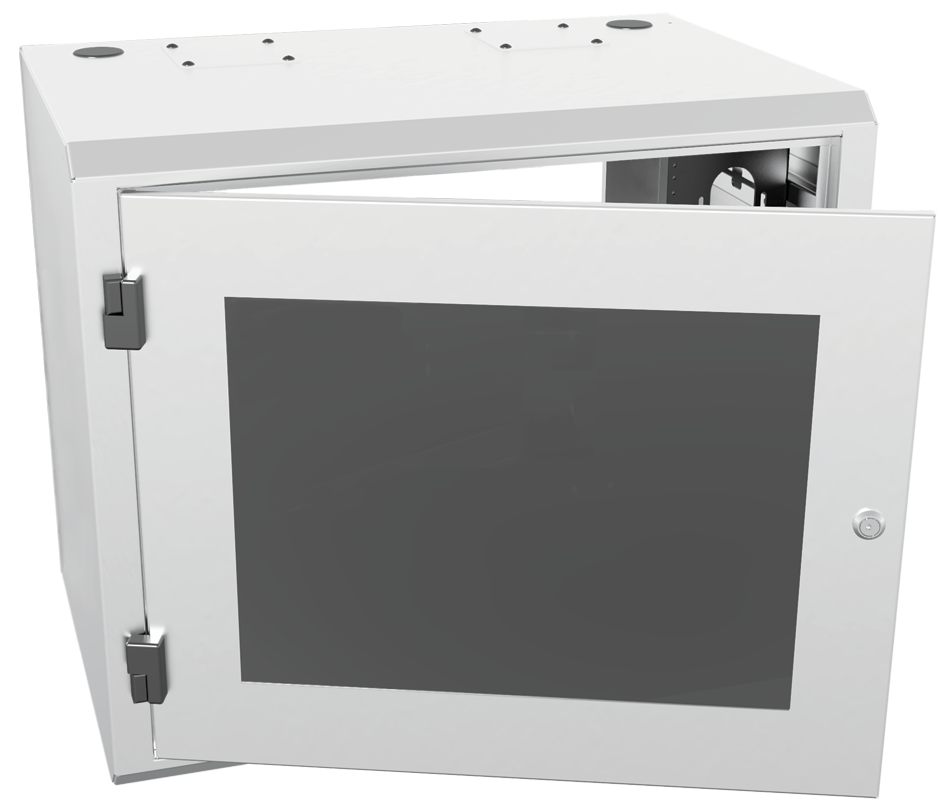

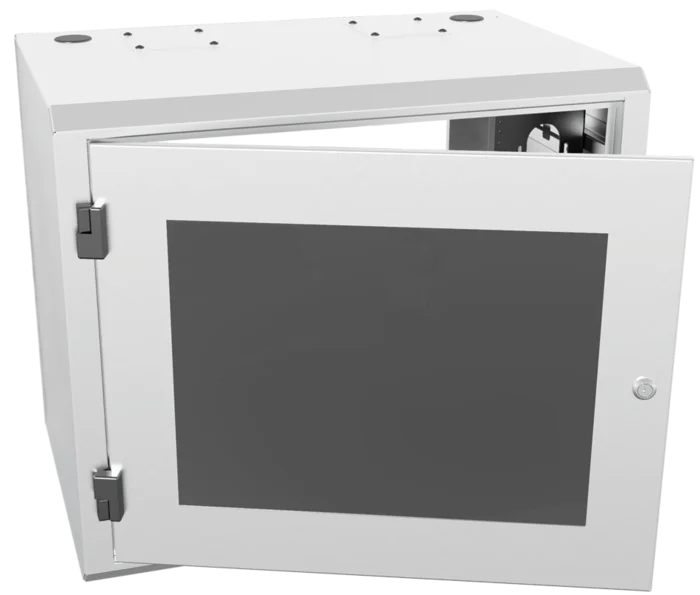

| SWING OUT WALL MOUNT CABINET (NO EXTENDER) - WHITE | |||||
|---|---|---|---|---|---|
| PART NUMBER | WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-20-W | 24" | 12U | 25" | 20" | ACRYLIC |
| RFM-2436-WM-20-W | 24" | 18U | 36" | 20" | ACRYLIC |
| RFM-2448-WM-20-W | 24" | 25U | 48" | 20" | ACRYLIC |
| RFM-3025-WM-20-W | 30" | 12U | 25" | 20" | ACRYLIC |
| RFM-3036-WM-20-W | 30" | 18U | 36" | 20" | ACRYLIC |
| RFM-3048-WM-20-W | 30" | 25U | 48" | 20" | ACRYLIC |

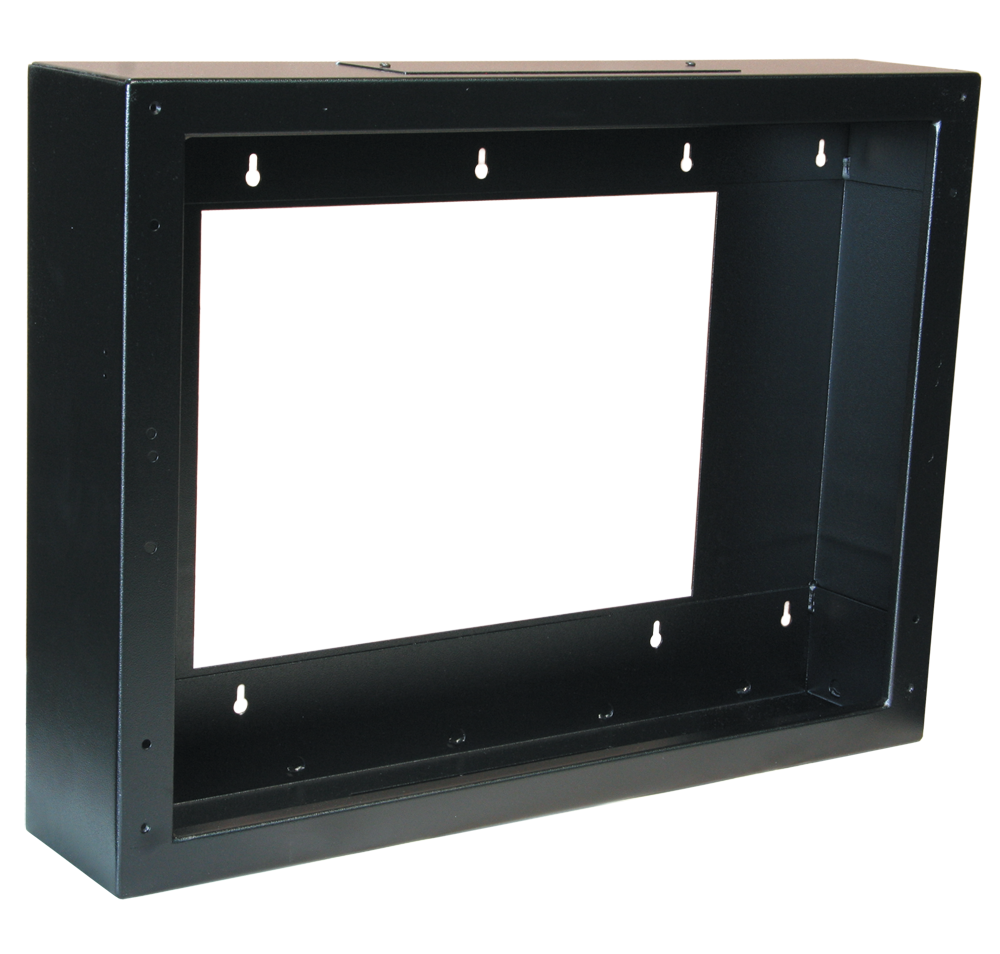

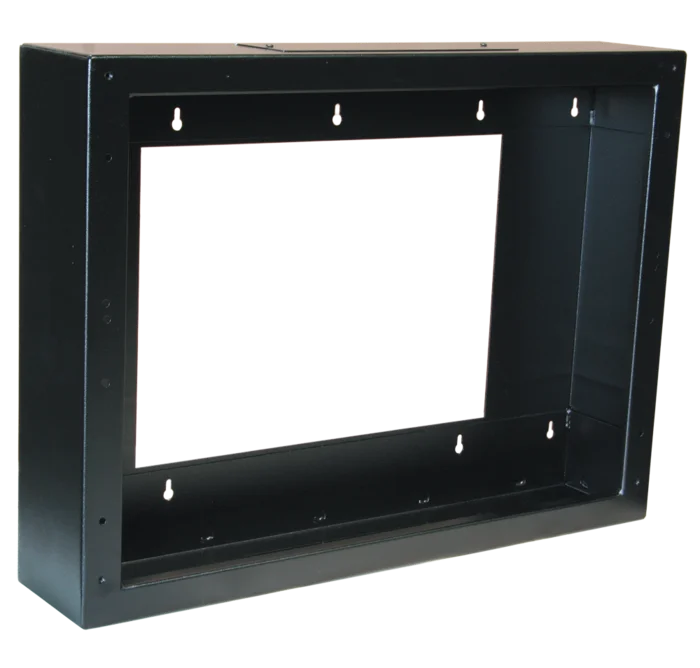

| EXTENDER ONLY (FOR SWING OUT WALL MOUNT CABINET) - BLACK | |||||
|---|---|---|---|---|---|
| PART NUMBER | WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-6X-B | 24" | 12U | 25" | 6" | N/A |
| RFM-2436-WM-6X-B | 24" | 18U | 36" | 6" | N/A |
| RFM-2448-WM-6X-B | 24" | 25U | 48" | 6" | N/A |
| RFM-3025-WM-6X-B | 30" | 12U | 25" | 6" | N/A |
| RFM-3036-WM-6X-B | 30" | 18U | 36" | 6" | N/A |
| RFM-3048-WM-6X-B | 30" | 25U | 48" | 6" | N/A |

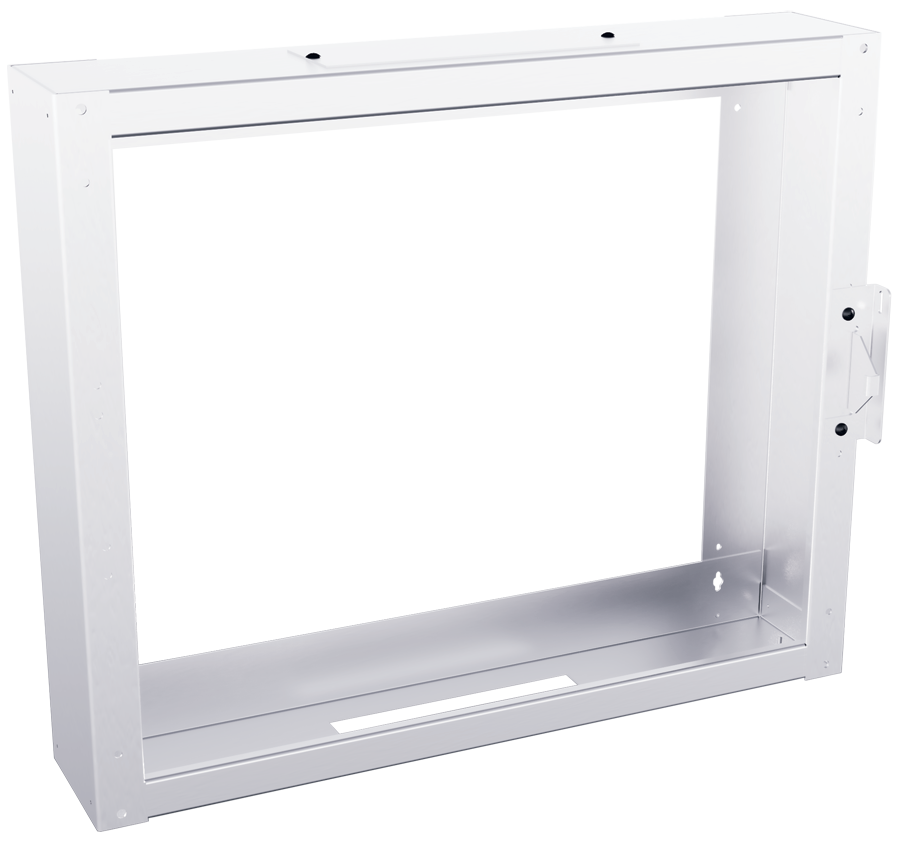

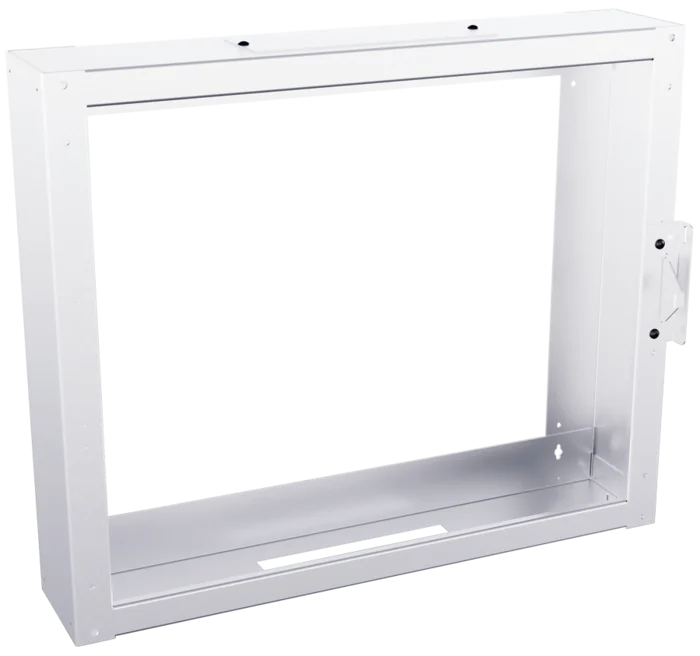

| EXTENDER ONLY (FOR SWING OUT WALL MOUNT CABINET) - WHITE | |||||
|---|---|---|---|---|---|
| PART NUMBER | WIDTH | RMU | HEIGHT | DEPTH | DOOR |
| RFM-2425-WM-6X-W | 24" | 12U | 25" | 6" | N/A |
| RFM-2436-WM-6X-W | 24" | 18U | 36" | 6" | N/A |
| RFM-2448-WM-6X-W | 24" | 25U | 48" | 6" | N/A |
| RFM-3025-WM-6X-W | 30" | 12U | 25" | 6" | N/A |
| RFM-3036-WM-6X-W | 30" | 18U | 36" | 6" | N/A |
| RFM-3048-WM-6X-W | 30" | 25U | 48" | 6" | N/A |
OPTIONS FOR CABINETS
Equipment Mounting Rail Kit
| PART NUMBER | CABINETWIDTH | HEIGHT (U) | COLOUR |
|---|---|---|---|
| RFM-2425-WM-MA | 24" | 12U | BLACK |
| RFM-2436-WM-MA | 24" | 18U | BLACK |
| RFM-2448-WM-MA | 24" | 25U | BLACK |
| RFM-3025-WM-MA | 30" | 12U | BLACK |
| RFM-3036-WM-MA | 30" | 18U | BLACK |
| RFM-3048-WM-MA | 30" | 25U | BLACK |
- Use with equipment that needs front and rear support
- Sold in pairs
- Tapped 10-32

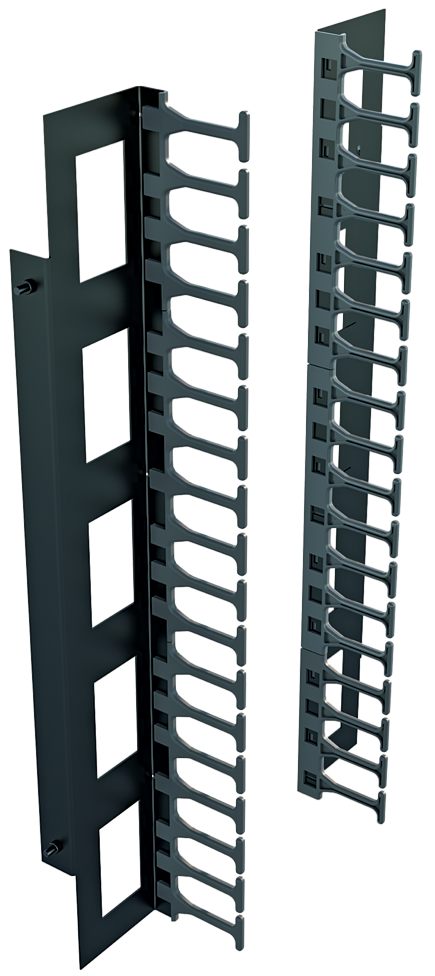

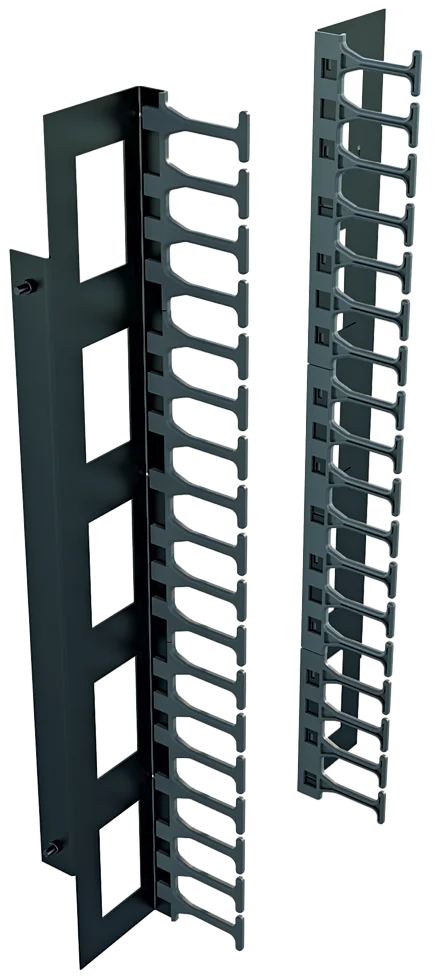

Vertical Finger Style Cable Managers
| PART NUMBER | CABINETWIDTH | HEIGHT (U) | COLOUR |
|---|---|---|---|
| RFM-WM-2412-4-VCM-F-B | 24" | 12U | BLACK |
| RFM-WM-2418-4-VCM-F-B | 24" | 18U | BLACK |
| RFM-WM-2425-4-VCM-F-B | 24" | 25U | BLACK |
| RFM-WM-3012-4-VCM-F-B | 30" | 12U | BLACK |
| RFM-WM-3018-4-VCM-F-B | 30" | 18U | BLACK |
| RFM-WM-3025-4-VCM-F-B | 30" | 25U | BLACK |
- Provides neat cable routing for premise cables
- Attaches to mounting angle with included hardware
- Adjustable front-to-rear
ACCESSORIES FOR CABINETS
Finger Style Cable Managers - Horizontal
| PART NUMBER | DEPTH | RMU (U) | COLOUR |
|---|---|---|---|
| 4.38 | 1U | BLACK | |
| 4.38 | 2U | BLACK | |
| 4.38 | 3U | BLACK | |
- Provides neat cable routing for premise cables
- Finger style design
- Available in 1U, 2U, and 3U heights
Cable Managers - Horizontal
| PART NUMBER | DEPTH |
|---|---|
| RFM-0U-HCM-19 | 3.00 |
| RFM-0U-HCM-19-5 | 5.00 |
Manage all of your network cabling neatly, regardless of cable volumes. These horizontal
managers are available in 3″ and 5″ depths.
Product Resources
- [PDF] Product Data Sheet: [DOWNLOAD]
Rack Shelf: Single Sided, Fixed
| PART NUMBER | DEPTH | LOAD CAPACITY |
|---|---|---|
| RFM-1909-RFS | 9.00 | 100LBS |
| RFM-1912-RFS | 12.00 | 100LBS |
| RFM-1915-RFS | 15.00 | 100LBS |
| RFM-1921-RFS | 21.00 | 100LBS |
Shelf Fits: Cabinets and Racks. 19″ Rack Mount.
Product Resources
- [PDF] Product Data Sheet: [DOWNLOAD]

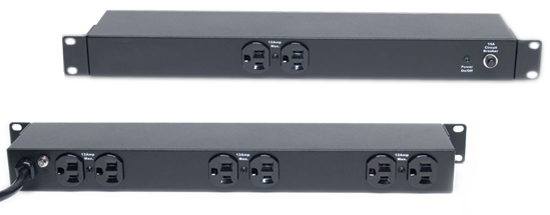

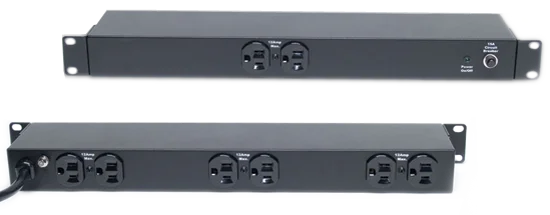

Power Bars / PDU - Horizontal
| PART NUMBER | AMPS | RECEPTACLES | PLUG |
|---|---|---|---|
| RFM-19-PBH-8 | 45U | (8) 5-15R | 5-15P |
- Straight plug style (5-15P)
- 115 VAC; 15 Amp
- 15’L (4.75M) power cord and circuit breaker
Exhaust Fans
| PART NUMBER | FANS | AIRFLOW | PLUG |
|---|---|---|---|
| RFM-1-FAN | 1 | 110 CFM | 5-15P |
| RFM-2-FAN | 2 | 220 CFM | 5-15P |
RFM 4” Exhaust Fans:
- 115VAC 50/60HZ 24/22W (Standard per each unit)
(230VAC 50/60HZ available upon request)
- Plug Type: 5-15P
- Fits RFM Wall Mount Cabinets only ( 30”& 24” Width Cabinets,
and Low Profile Cabinets)
- Total Air Flow: 110 CFM (1-Fan), 220CFM (2-Fan)
Horizontal Grounding Bar
| PART NUMBER | WIDTH | FITS |
|---|---|---|
| RFM-HGB-19 | 1.00 | 19" EIA |
Horizontal Grounding bars for both Wall Mount Cabinets and Wall Mount Racks.
Product Resources
- [PDF] PDF] Product Data Sheet: [DOWNLOAD]
