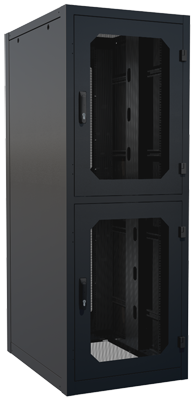

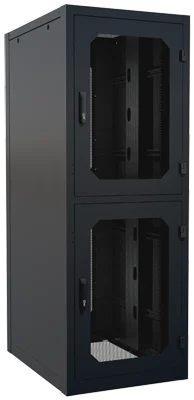

RFM Co-Location Cabinet
R. F. Mote Pre-Configured 36 inch wide cabinets typical configuration includes:
- Welded steel frame with 2500 lb. static load
- Solid top panel with four large (4.5" x 9") brush covered cable access ports
- Perforated front and rear doors (78% perforation) each with lockable door handles
- Two solid, lockable, removable side panels
- Two pairs of fully adjustable (front-to-back) punched mounting rails
- Levelling feet and hardware package
Click to view 3D animation – Coming Soon!
For detailed CAD drawings, please click on the part numbers listed below for the drawings related to that specific cabinet size / configuration.
Pre-Configured Colocation Cabinet
| CONFIGURED CABINET | |||||
|---|---|---|---|---|---|
| PART NUMBER | WIDTH | DEPTH | HEIGHT | NUMBER OF COMPARTMENTS | RU (EACH COMPARTMENT) |
| RFM-COLO-219 | 24.00 | 36.150 | 83.00 | 2 | 21U |
| RFM-COLO-319 | 24.00 | 36.150 | 83.00 | 3 | 13U |
| RFM-COLO-419 | 24.00 | 36.150 | 83.00 | 4 | 10U |
| RFM-COLO-219-2442 | 24.00 | 42.150 | 83.00 | 2 | 21U |
| RFM-COLO-319-2442 | 24.00 | 42.150 | 83.00 | 3 | 13U |
| RFM-COLO-419-2442 | 24.00 | 42.150 | 83.00 | 4 | 10U |
| RFM-COLO-219-3036 | 30.00 | 36.150 | 83.00 | 2 | 21U |
| RFM-COLO-319-3036 | 30.00 | 36.150 | 83.00 | 3 | 13U |
| RFM-COLO-419-3036 | 30.00 | 36.150 | 83.00 | 4 | 10U |
| RFM-COLO-219-3042 | 30.00 | 42.150 | 83.00 | 2 | 21U |
| RFM-COLO-319-3042 | 30.00 | 42.150 | 83.00 | 3 | 13U |
| RFM-COLO-419-3042 | 30.00 | 42.150 | 83.00 | 4 | 10U |
RFM Colocation Cabinets provide a sturdy, cost-effective solution for supporting rack-mount network, computer server and data storage equipment in data centers, computer equipment rooms and other IT facilities.
| COLOCATION FAN | ||
|---|---|---|
| PART NUMBER | # OF FANS | DESCRIPTION |
| RFM-COLO-FAN | 2 | Dual Fan Kit for Colo Cabinet (Attaches to Rear Door) |
Accessories for Cabinets

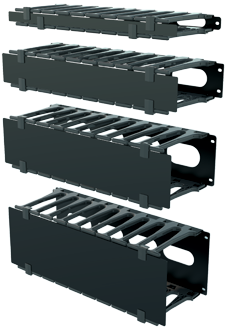

Finger Style Cable Managers - Horizontal
| PART NUMBER | DEPTH | RMU (U) | COLOUR |
|---|---|---|---|
| 4.38 | 1U | BLACK | |
| 4.38 | 2U | BLACK | |
| 4.38 | 3U | BLACK | |
• Provides neat cable routing for premise cables
• Finger style design
• Available in 1U, 2U, and 3U heights
Finger Style (Extended) Cable Managers - Horizontal
| PART NUMBER | DEPTH | RMU (U) | COLOUR |
|---|---|---|---|
| 6.90 | 1U | BLACK | |
| 6.90 | 2U | BLACK | |
| 6.90 | 3U | BLACK | |
| 6.90 | 4U | BLACK | |
• Provides neat cable routing for premise cables
• Finger style design
• Available in 1U, 2U, 3U and 4U heights
Cable Managers - Horizontal
| PART NUMBER | DEPTH | RU'S |
|---|---|---|
| RFM-191D-HCM | 2.40 | 1U |
| RFM-192D-HCM-TD | 2.40 | 2U |
| RFM-194D-HCM-TD | 2.40 | 4U |
Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers are available in 1U, 2U, and 4U spacing and feature removable door.
Product Resources
- [PDF] Product Data Sheet:[DOWNLOAD]
Finger Style Cable Managers - Horizontal
| PART NUMBER | DEPTH | RU'S |
|---|---|---|
| RFM-191D-HCM-F | 3.00 | 1U |
| RFM-192D-HCM-F | 3.00 | 2U |
Manage all of your network cabling neatly, regardless of cable volumes. These fingered horizontal managers are available in 1U and 2U spacing and feature removable door.
Product Resources
- [PDF] Product Data Sheet:[DOWNLOAD]
Cable Managers - Horizontal
| PART NUMBER | DEPTH |
|---|---|
| RFM-0U-HCM-19 | 3.00 |
| RFM-0U-HCM-19-5 | 5.00 |
Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers are available in 3″ and 5″ depths.
Product Resources
- [PDF] Product Data Sheet:[DOWNLOAD]
Overhead Horizontal Cable Trough For RFM2 Cabinets: High Density
| PART NUMBER | FITS | DESCRIPTION |
|---|---|---|
| 30" WIDE CABINET | CABLE TROUGH | |
| 24" WIDE CABINET | CABLE TROUGH | |
| RFM-HCT-J-0 | RFM2-HCT-XX-12 | JOINER (PAIR) |
| RFM2-HCT-XX-12 | END CAP | |
Manage all of your network cabling neatly, regardless of cable volumes. 12″ Depth HCT for RFM2 Cabinets. Cable trough joiner sold in pairs.
Cabinet Shelf: 4 Point Rack Mounting
| PART NUMBER | ADJ. MOUNT DEPTH | LOAD CAPACITY |
|---|---|---|
| 6.00 ~ 33.475 | 200LBS | |
| 6.00 ~ 26.625 | 200LBS | |
| RFM-1716-CFS-4 * | 6.00 ~ 23.625 | 200LBS |
Shelf Fits: Cabinets and Four Post Racks. 19″ Rack Mount.
* RFM-1716-CFS-4 is non-vented.
Product Resources
- [PDF] Product Data Sheet:[DOWNLOAD]
| PART NUMBER | ADJ. MOUNT DEPTH | LOAD CAPACITY |
|---|---|---|
| 23.75 - 45.50 | 400LBS | |
Shelf Fits: Cabinets and Four Post Racks. 19″ Rack Mount.
Product Resources
- [PDF] Product Data Sheet:[DOWNLOAD]
| PART NUMBER | WIDTH | DEPTH | LOAD CAPACITY |
|---|---|---|---|
| 17.00 | 26.00 | 100LBS | |
Fully Extendable/Retracable Shelf. 19″ Rack Mount.
Product Resources
- [PDF] Product Data Sheet:[DOWNLOAD]
Air Dam Kit
| 36" WIDE CABINET | 31.5" WIDE CABINET | 30" WIDE CABINET | 24" WIDE CABINET | RU's |
|---|---|---|---|---|
| RFM2-ADK-3152-B | 52U | |||
| RFM2-ADK-3148-B | 48U | |||
| RFM2-ADK-3145-B | 45U | |||
| RFM2-ADK-3142-B | 42U | |||
| RFM2-ADK-3130-B | 30U | |||
| RFM2-ADK-3117-B | 17U | |||
• The Air Dam Kit attaches to the front mounting rails, providing a complete seal around
mounted equipment, ensuring complete airflow isolation and eliminating bypass airflow.
• The Air Dam Kit also provides seals above and below mounted equipment.
| Brush Covers | QTY | FITS |
|---|---|---|
| RFM2-ADBK | 8 | RFM2-ADK-30xx-B RFM2-ADK-36xx-B |
• Set of 8 brush covers that conceal cable opening in the equipment mounting rails to block airflow around equipment.
Product Resources
Exhaust Fans 4"
(shown with optional RFM-FAN-FILTER)
| PART NUMBER | FANS | AIRFLOW | PLUG |
|---|---|---|---|
| RFM2-2-FAN-CAB | 2 | 220 CFM | 5-15P |
| RFM2-4-FAN-CAB | 4 | 440 CFM | 5-15P |
This item is for RFM2 Cabinets only.
RFM2 4” Exhaust Fans:
• 115VAC 50/60HZ 24/22W (Standard per each unit)
(230VAC 50/60HZ available upon request)
• Plug Type: 5-15P
• Fits RFM2 Cabinets only (36”, 31.5″, 30” & 24” Width Cabinets)
• Total Air Flow: 220 CFM (2-Fan), 440CFM (4-Fan)
[PDF] DUAL Fan Assembly Instructions: [DOWNLOAD]
[PDF] FOUR Fan Assembly Instructions: [DOWNLOAD]
Casters and Caster Pads
| PART NUMBER | DEPTH | FITS* |
|---|---|---|
| 2.5 | 30" W CABINET | |
| 2.5 | 24" W CABINET | |
* This item is for RFM2 Cabinets only.
[PDF] Caster Pad Assembly Instructions: [DOWNLOAD]
Jumper Kit
| PART NUMBER | LENGTH | WIRE |
|---|---|---|
| RFM-JK-60 | 60" (1.54M) | 6 AWG |
| Kit assembly consists of: |
|---|
| • 6 Awg Wire |
| • 60” Cable Length (1.54 M) |
| • includes (1x) 1/4-20 Keps Nut |
| • includes (1x) #10-32 Keps Nut |
| • Crimped One End: 1/4” Lug Connector (45 Degree Angle, 2 Eye Holes) |
Grounding wire / jumper kit
Product Resources
- [PDF] Product Data Sheet:[DOWNLOAD]
Hardware Package
| PART NUMBER | DESCRIPTION |
|---|---|
| RFM-CN | Qty 24 x 1/4-20 Cage Nuts and 3/4” Screws |
| RFM-CN100 | Qty 96 x 1/4-20 Cage Nuts and 3/4” Screws |
| RFM-CN10-32 | Qty 24 x #10-32 Cage Nuts and 1/2” Screws |
| RFM-CN 10-32100 | Qty 96 x #10-32 Cage Nuts and 1/2” Screws |
| RFM-10-32 | Qty 100 x #10-32 x 1/2" Screws |
| RFM-GK | Ganging Kit includes: • Qty 4 x 5/16-18 x 1" Hex Head Bolt • Qty 4 x 5/16-18 Keps Nut • Qty 4 x 5/16" Flat Washer |
Hardware package for any cabinet or rack installation.
