Cage Wall Systems
Product Resources
• Product Data Sheet: (COMING SOON)
Product Description
R.F. Mote cage systems provide an additional physical layer of security for your data and information system equipment.
Ideal for use in Data Center and Colocation sites; Cages allow groupings of cabinets to be segregated with access controlled by customer or security clearance levels.
Cage Systems Features and Highlights
• Modular design
• Walls configurable in 1 foot (12") increments
• Heights ranging from 81” to 96”
• Most common Sizes are 96”(8’) or 93”
• Panels perforated 3/8" square 16 gauge
• Hinged or Sliding doors
• Doors available with various locking options:
• keyed lock • combination lock • electronic lock • Provisions in top valence to accept threaded rods extended to ceiling

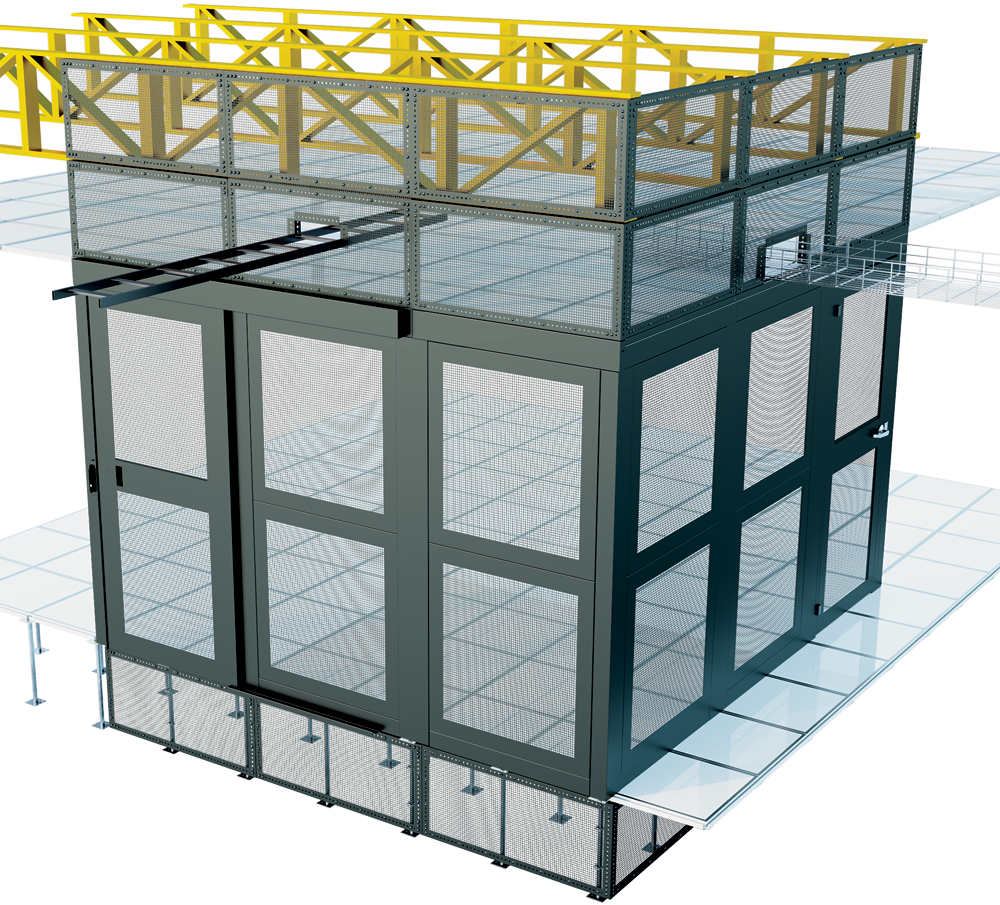

• Build to Suit ( BTS ) cage panels for above cage wall and below floor
• CAD layout and bill of materials provided for each project
• Heavy gauge steel construction
• Durable textured black powder coat finish
• Custom sizes and colours available on request
Cage Walls
| Perforated Wall Section includes: 2x Wall Panels, 1x Bottom Filler, 1x Valance, 1x Roof Bracket | ||||||
| FITS | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| 36"w | RFM-CC-PWS-3696 | RFM-CC-PWS-3693 | RFM-CC-PWS-3690 | RFM-CC-PWS-3687 | RFM-CC-PWS-3684 | RFM-CC-PWS-3681 |
| 48"w | RFM-CC-PWS-4896 | RFM-CC-PWS-4893 | RFM-CC-PWS-4890 | RFM-CC-PWS-4887 | RFM-CC-PWS-4884 | RFM-CC-PWS-4881 |
Note:
• 96" H, 90"H and 84" H are most common sizes and c/w 6'H valances.
• Others are same height verticals c/w 3" valances
Cage Wall Joiners and Columns
| Joiner Column 8'w (all heights) includes: 1x 8" Joining Column and 1x Joining Bracket (RFM-JB-36) | ||||||
| FITS | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| ALL | RFM-CCJC-8-90-asy | RFM-CCJC-8-90-asy | RFM-CCJC-8-84-asy | RFM-CCJC-8-84-asy | RFM-CCJC-8-78-asy | RFM-CCJC-8-78-asy |
| End Wall Column (all heights) includes: 1x 4"w End Column and Wall Bracket to attach cage to building wall | ||||||
| FITS | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| ALL | RFM-CC-EWC-90 | RFM-CC-EWC-90 | RFM-CC-EWC-84 | RFM-CC-EWC-84 | RFM-CC-EWC-78 | RFM-CC-EWC-78 |
| Corner Post Column (all heights) includes: 1x 8" Corner Post Column | ||||||
| FITS | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| ALL | RFM-CC-CP-90 | RFM-CC-CP-90 | RFM-CC-CP-84 | RFM-CC-CP-84 | RFM-CC-CP-78 | RFM-CC-CP-78 |
| T-Wall Bracket Kit used when cage walls joint at a 'T' | ||||||
| FITS | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| ALL | RFM-CC-CCPB | RFM-CC-CCPB | RFM-CC-CCPB | RFM-CC-CCPB | RFM-CC-CCPB | RFM-CC-CCPB |
Cage Doors - Hinged
| Hinged Cage Doors - for 35.5" Opening. Key Lock c/w electronic strike, storeroom handle, valence, r brkt, reqs columns | ||||||
| Fits |
96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| RH | RFM-CC-HD-369693-V4-RH | RFM-CC-HD-3693-V4-RH | RFM-CC-HD-3690-V4-RH | RFM-CC-HD-3687-V4-RH | RFM-CC-HD-3684-V4-RH | RFM-CC-HD-3681-V4-RH |
| LH | RFM-CC-HD-369693-V4-LH | RFM-CC-HD-3693-V4-LH | RFM-CC-HD-3690-V4-LH | RFM-CC-HD-3687-V4-LH | RFM-CC-HD-3684-V4-LH | RFM-CC-HD-3681-V4-LH |
| Hinged Cage Doors - for 47.5" opening. Key Lock c/w electronic strike, storeroom handle, valence, r brkt, req columns | ||||||
| Fits |
96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| RH | RFM-CC-HD-489693-V4-RH | RFM-CC-HD-4893-V4-RH | RFM-CC-HD-4890-V4-RH | RFM-CC-HD-4887-V4-RH | RFM-CC-HD-4884-V4-RH | RFM-CC-HD-4881-V4-RH |
| LH | RFM-CC-HD-489693-V4-LH | RFM-CC-HD-4893-V4-LH | RFM-CC-HD-4890-V4-LH | RFM-CC-HD-4887-V4-LH | RFM-CC-HD-4884-V4-LH | RFM-CC-HD-4881-V4-LH |
| Cage Door Closers (Optional) | ||||||
| Fits | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| ALL |
RFM-CC-HD-CLOSER | RFM-CC-HD-CLOSER | RFM-CC-HD-CLOSER | RFM-CC-HD-CLOSER | RFM-CC-HD-CLOSER | RFM-CC-HD-CLOSER |
Notes: • 35.5" opening doors require 4' of wall space
• 47.5" opening doors require 5' of wall space
• Hinged doors for 96" H cage are 93" tall which allows for 48U cabinet clearance
• All hinged doors c/w storeroom lever sets and electronic strikes
(strikes can be connected for electronic access or left in fail secure mode with the leverset acting as the lock)
• All doors swing out
• Requires columns
• Optional Door Closer available
Cage Door (Hinged Door Features)
| CAGE DOORS (HINGED DOOR FEATURES) | ||||||
| ITEM |
PART NUMBER | |||||
| Storeroom Leverset |
Storeroom leverset handle that is key locked from the outside and does not lock on the inside ( emergency egress)
|
|||||
| Electronic Strike |
Customer has the option of using for E access or can set it to fail secure and use the lever handle key |
|||||
| Automatic Door Closer |
Customer has the option of purchasing an automatic door closer to prevent doors from being left open
|
|||||
Notes: • NB- 96” H cage hinged doors c/w 3” valance - allows for 93” height door opening - clears a 48U cabinet
Cage Doors - Sliding
| Sliding Cage Doors - Mid Wall: 38" Opening - Includes: 2x VAL, 2x COL, 2x PNL, 1x FILLER, 2x RB, 2x JB36 | ||||||
| Fits |
96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| Mid | RFM-CC-SD-3896-LH-V3-ASY | RFM-CC-SD-3893-LH-V3-ASY | RFM-CC-SD-3890-LH-V3-ASY | RFM-CC-SD-3887-LH-V3-ASY | RFM-CC-SD-3884-LH-V3-ASY | RFM-CC-SD-3881-LH-V3-ASY |
| Mid | RFM-CC-SD-3896-RH-V3-ASY | RFM-CC-SD-3893-RH-V3-ASY | RFM-CC-SD-3890-RH-V3-ASY | RFM-CC-SD-3887-RH-V3-ASY | RFM-CC-SD-3884-RH-V3-ASY | RFM-CC-SD-3881-RH-V3-ASY |
| Sliding Cage Doors - End Wall: 37.5" Opening - Includes: 2x VAL, 2x COL, 2x PNL, 1x FILLER, 2x RB, 1x JB36, 1x WB | ||||||
| Fits | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| End | RFM-CC-SD-3896-RH-V3-END-ASY | RFM-CC-SD-3893-RH-V3-END-ASY | RFM-CC-SD-3890-RH-V3-END-ASY | RFM-CC-SD-3887-RH-V3-END-ASY | RFM-CC-SD-3884-RH-V3-END-ASY | RFM-CC-SD-3881-RH-V3-END-ASY |
| End | RFM-CC-SD-3896-LH-V3-END-ASY | RFM-CC-SD-3893-LH-V3-END-ASY | RFM-CC-SD-3890-LH-V3-END-ASY | RFM-CC-SD-3887-LH-V3-END-ASY | RFM-CC-SD-3884-LH-V3-END-ASY | RFM-CC-SD-3881-LH-V3-END-ASY |
| Sliding Cage Doors - Corner Wall: 38" Opening - Includes: 2x VAL, 1x COL, 1 CRNR, 2x PNL, 1x FILLER, 2x RB, 1x JB36 | ||||||
| Fits | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| Corner | RFM-CC-SD-3896-RH-V3-COR-ASY | RFM-CC-SD-3893-RH-V3-COR-ASY | RFM-CC-SD-3890-RH-V3-COR-ASY | RFM-CC-SD-3887-RH-V3-COR-ASY | RFM-CC-SD-3884-RH-V3-COR-ASY | RFM-CC-SD-3881-RH-V3-COR-ASY |
| Corner | RFM-CC-SD-3896-LH-V3-COR-ASY | RFM-CC-SD-3893-LH-V3-COR-ASY | RFM-CC-SD-3890-LH-V3-COR-ASY | RFM-CC-SD-3887-LH-V3-COR-ASY | RFM-CC-SD-3884-LH-V3-COR-ASY | RFM-CC-SD-3881-LH-V3-COR-ASY |
Notes:
• Right hand, left hand available
• Various models for use mid wall, end of walll, or at corner
• Electronic locking option
• Door track and rolling mechanism requires 8' of wall space
Cage Privacy Panels
| Cage Privacy Panels: 4FT (48") Wide | ||||||
| Fits | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| 48"w |
RFM-CC-WP-BP-4043 | RFM-CC-WP-BP-4043 | RFM-CC-WP-BP-4040 | RFM-CC-WP-BP-4040 | RFM-CC-WP-BP-4037 | RFM-CC-WP-BP-4037 |
| Cage Privacy Panels: 3FT (36") Wide | ||||||
| Fits | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| 36"w | RFM-CC-WP-BP-2843 | RFM-CC-WP-BP-2843 | RFM-CC-WP-BP-2840 | RFM-CC-WP-BP-2840 | RFM-CC-WP-BP-2837 | RFM-CC-WP-BP-2837 |
| Cage Door (Sliding or Hinged) Privacy Panels: c/w 2 Privacy Panels | ||||||
| Fits | 96" Cage | 93" Cage | 90" Cage | 87" Cage | 84" Cage | 81" Cage |
| Doors |
RFM-CC-WP-BP-DOOR | RFM-CC-WP-BP-DOOR | RFM-CC-WP-BP-DOOR | RFM-CC-WP-BP-DOOR | RFM-CC-WP-BP-DOOR | RFM-CC-WP-BP-DOOR |
Notes: • Privacy Panels cover perforated area of wall panels and doors panel to restrict visibiltiy through cage wall
• Attaches directly onto existing perforated panel(s) and can easily be removed as per tenant requirements

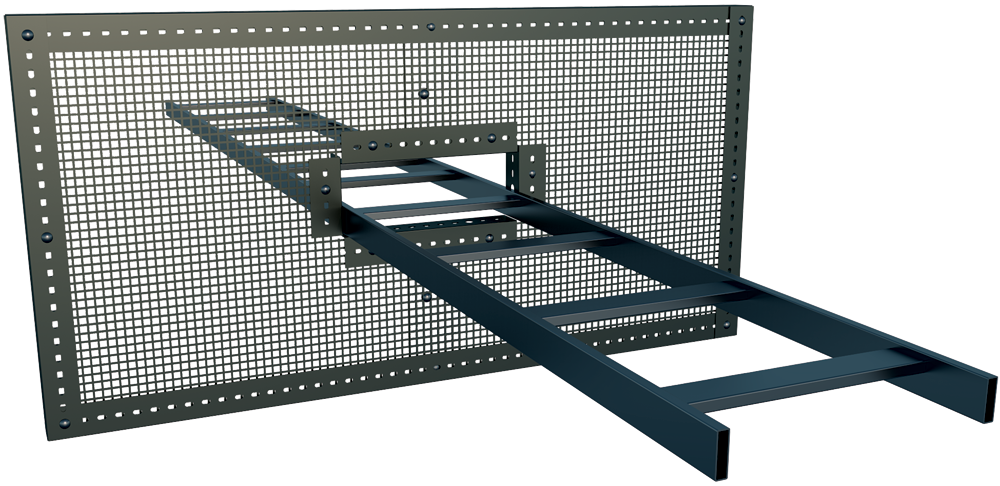

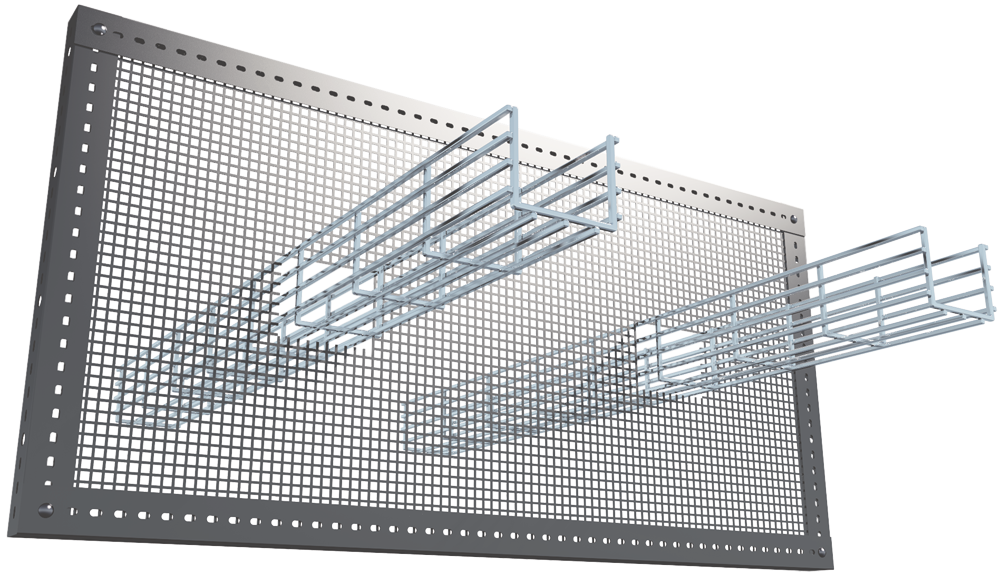

Build To Suit (BTS) Perforated Panels
| CAGE PERFORATED PANELS - ABOVE AND BELOW CAGE OPTIONS | ||||||
| DETAILED DESCRIPTION |
PART NUMBER | |||||

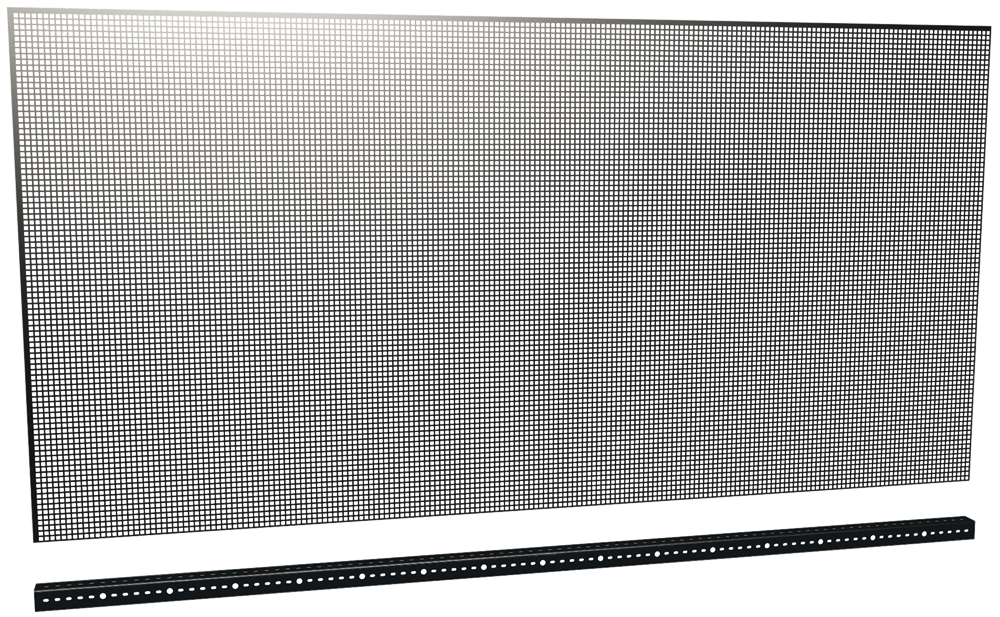

| 3/8"X3/8" SQ. MESH SHEET 4' X 8' X 16 GAUGE painted BLACK |
RFM-CC-MESH-4X8X16G |
|||||
| 3/8"X3/8" SQ. MESH SHEET 2' X 8' X 16 GAUGE painted BLACK |
RFM-CC-MESH-2X8X16G |
|||||
| MESH JOINER ANGLE - 2"x2"x96" x 16G includes 20 carriage bolts and nuts per angle |
RFM-CC-2X2X96 16G ANGLE |
|||||
| U-BOLT FOR JOINING UNDER FLOOR MESH. (1 OR 2 EVERY 4 FEET DEPENDING ON HEIGHT) |
RFM-CC-U-BOLT |
|||||
Notes: • Build To Suit (BTS) Perforated Panels
