Build Your Own RFM2 - 30" Wide Cabinet







R. F. Mote Build Your Own 30 inch wide cabinets typical configuration can include: 2 lockable doors, 2 side panels, mounting rails, levelling feet, large brush covered cable openings, and hardware package.

Product Resources

• Product Data Sheet:[EN][FR]

• MasterFormat specs:[DOWNLOAD]

• Product Video



• UL 2416 Listed
• UL Rated for up to 3000 LBS Static Load

OPTIONS FOR CABINETS
Cabinet Frames 30" Wide




FRAME - 48" DEPTH
PART NUMBER WIDTH DEPTH HEIGHT RU's USABLE D
RFM2-304852-F-B 30.00 48.150 97.125 52U 45.625
RFM2-304848-F-B 30.00 48.150 90.125 48U 45.625
RFM2-304845-F-B 30.00 48.150 84.875 45U 45.625
RFM2-304842-F-B 30.00 48.150 80.00 42U 45.625
RFM2-304830-F-B 30.00 48.150 59.00 30U 45.625
RFM2-304817-F-B 30.00 48.150 35.00 17U 45.625
FRAME - 42" DEPTH
PART NUMBER WIDTH DEPTH HEIGHT RU's USABLE D
RFM2-304252-F-B 30.00 42.150 97.125 52U 39.625
RFM2-304248-F-B 30.00 42.150 90.125 48U 39.625
RFM2-304245-F-B 30.00 42.150 84.875 45U 39.625
RFM2-304242-F-B 30.00 42.150 80.00 42U 39.625
RFM2-304230-F-B 30.00 42.150 59.00 30U 39.625
RFM2-304217-F-B 30.00 42.150 35.00 17U 39.625
FRAME - 36" DEPTH
PART NUMBER WIDTH DEPTH HEIGHT RU's USABLE D
RFM2-303648-F-B 30.00 36.150 90.125 48U 33.625
RFM2-303645-F-B 30.00 36.150 84.875 45U 33.625
RFM2-303642-F-B 30.00 36.150 80.00 42U 33.625
RFM2-303630-F-B 30.00 36.150 59.00 30U 33.625
RFM2-303617-F-B 30.00 36.150 35.00 17U 33.625
FRAME - 30" DEPTH
PART NUMBER WIDTH DEPTH HEIGHT RU's USABLE D
RFM2-303048-F-B 30.00 30.150 90.125 48U 27.625
RFM2-303045-F-B 30.00 30.150 84.875 45U 27.625
RFM2-303042-F-B 30.00 30.150 80.00 42U 27.625
RFM2-303030-F-B 30.00 30.150 59.00 30U 27.625
RFM2-303017-F-B 30.00 30.150 35.00 17U 27.625
FRAME - 24" DEPTH
PART NUMBER WIDTH DEPTH HEIGHT RU's USABLE D
RFM2-302448-F-B 30.00 24.150 90.125 48U 21.625
RFM2-302445-F-B 30.00 24.150 84.875 45U 21.625
RFM2-302442-F-B 30.00 24.150 80.00 42U 21.625
RFM2-302430-F-B 30.00 24.150 59.00 30U 21.625
RFM2-302417-F-B 30.00 24.150 35.00 17U 21.625

RFM2 Cabinet Frames provides a sturdy, cost-effective solution for supporting rack-mount network, computer server and
data storage equipment in data centers, computer equipment rooms and other IT facilities.
Mounting Angles

Mounting Angles


19" MOUNT - TAPPED AND SQUARE HOLE
TAPPED #10-32 - 19" EIA. SQUARE HOLE - 19" EIA. HEIGHT RU's
RFM2-1952-MA-30-PR RFM2-1952-MA-SQ-30-PR 97.00 52U
RFM2-1948-MA-30-PR RFM2-1948-MA-SQ-30-PR 90.00 48U
RFM2-1945-MA-30-PR RFM2-1945-MA-SQ-30-PR 85.00 45U
RFM2-1942-MA-30-PR RFM2-1942-MA-SQ-30-PR 80.00 42U
RFM2-1930-MA-30-PR RFM2-1930-MA-SQ-30-PR 59.00 30U
RFM2-1917-MA-30-PR RFM2-1917-MA-SQ-30-PR 35.00 17U

Mounting Angles (Tapped and Square Hole) are sold in pairs.

Cabinet Doors




LEFT HAND HINGE MOUNT
PERFORATED ACRYLIC SOLID LOUVERED HEIGHT RU's
RFM2-3052-1-P-LH-B RFM2-3052-1-LH-B RFM2-3052-2-LH-B RFM2-3052-3-LH-B 97.00 52U
RFM2-3048-1-P-LH-B RFM2-3048-1-LH-B RFM2-3048-2-LH-B RFM2-3048-3-LH-B 90.00 48U
RFM2-3045-1-P-LH-B RFM2-3045-1-LH-B RFM2-3045-2-LH-B RFM2-3045-3-LH-B 85.00 45U
RFM2-3042-1-P-LH-B RFM2-3042-1-LH-B RFM2-3042-2-LH-B RFM2-3042-3-LH-B 80.00 42U
RFM2-3030-1-P-LH-B RFM2-3030-1-LH-B RFM2-3030-2-LH-B RFM2-3030-3-LH-B 59.00 30U
RFM2-3017-1-P-LH-B RFM2-3017-1-LH-B RFM2-3017-2-LH-B RFM2-3017-3-LH-B 35.00 17U
RIGHT HAND HINGE MOUNT
PERFORATED ACRYLIC SOLID LOUVERED HEIGHT RU's
RFM2-3052-1-P-RH-B RFM2-3052-1-RH-B RFM2-3052-2-RH-B RFM2-3052-3-RH-B 97.00 52U
RFM2-3048-1-P-RH-B RFM2-3048-1-RH-B RFM2-3048-2-RH-B RFM2-3048-3-RH-B 90.00 48U
RFM2-3045-1-P-RH-B RFM2-3045-1-RH-B RFM2-3045-2-RH-B RFM2-3045-3-RH-B 85.00 45U
RFM2-3042-1-P-RH-B RFM2-3042-1-RH-B RFM2-3042-2-RH-B RFM2-3042-3-RH-B 80.00 42U
RFM2-3030-1-P-RH-B RFM2-3030-1-RH-B RFM2-3030-2-RH-B RFM2-3030-3-RH-B 59.00 30U
RFM2-3017-1-P-RH-B RFM2-3017-1-RH-B RFM2-3017-2-RH-B RFM2-3017-3-RH-B 35.00 17U
SPLIT PERFORATED
PART NUMBER HEIGHT RU's
RFM2-3052-1-P-DD-B 97.00 52U
RFM2-3048-1-P-DD-B 90.00 48U
RFM2-3045-1-P-DD-B 85.00 45U
RFM2-3042-1-P-DD-B 80.00 42U
RFM2-3030-1-P-DD-B 59.00 30U
RFM2-3017-1-P-DD-B 35.00 17U


• Product Data Sheet
Side Panels




SOLID SIDE PANEL
48" DEPTH 42" DEPTH 36" DEPTH 30" DEPTH 24" DEPTH HEIGHT RU's
RFM2-4852-4-B RFM2-4252-4-B N/A N/A N/A 97.00 52U
RFM2-4848-4-B RFM2-4248-4-B RFM2-3648-4-B RFM2-3048-4-B RFM2-2448-4-B 90.00 48U
RFM2-4845-4-B RFM2-4245-4-B RFM2-3645-4-B RFM2-3045-4-B RFM2-2445-4-B 85.00 45U
RFM2-4842-4-B RFM2-4242-4-B RFM2-3642-4-B RFM2-3042-4-B RFM2-2442-4-B 80.00 42U
RFM2-4830-4-B RFM2-4230-4-B RFM2-3630-4-B RFM2-3030-4-B RFM2-2430-4-B 59.00 30U
RFM2-4817-4-B RFM2-4217-4-B RFM2-3617-4-B RFM2-3017-4-B RFM2-2417-4-B 35.00 17U
PERFORATED SIDE PANEL
48" DEPTH 42" DEPTH 36" DEPTH 30" DEPTH 24" DEPTH HEIGHT RU's
RFM2-4852-4-P-B RFM2-4252-4-P-B N/A N/A N/A 97.00 52U
RFM2-4848-4-P-B RFM2-4248-4-P-B RFM2-3648-4-P-B RFM2-3048-4-P-B N/A 90.00 48U
RFM2-4845-4-P-B RFM2-4245-4-P-B RFM2-3645-4-P-B RFM2-3045-4-P-B N/A 85.00 45U
RFM2-4842-4-P-B RFM2-4242-4-P-B RFM2-3642-4-P-B RFM2-3042-4-P-B N/A 80.00 42U
RFM2-4830-4-P-B RFM2-4230-4-P-B RFM2-3630-4-P-B RFM2-3030-4-P-B N/A 59.00 30U
RFM2-4817-4-P-B RFM2-4217-4-P-B RFM2-3617-4-P-B RFM2-3017-4-P-B N/A 35.00 17U

Used to close off the ends of rows or on either of a single rack installation, side panels provide protection
of the IT equipment and related cabling and provide a professional 'finished' look.


• Product Data Sheet
Finger Style Cable Managers - Vertical







FINGER STYLE - 5" DEPTH
FITS 30 INCH WIDE CAB FITS 36 INCH WIDE CAB WIDTH RU's
RFM2-552-VCM-F-B RFM2-552-36-VCM-F-B 5.00 52U
RFM2-548-VCM-F-B RFM2-548-36-VCM-F-B 5.00 48U
RFM2-545-VCM-F-B RFM2-545-36-VCM-F-B 5.00 45U
RFM2-542-VCM-F-B RFM2-542-36-VCM-F-B 5.00 42U
RFM2-530-VCM-F-B RFM2-530-36-VCM-F-B 5.00 30U
RFM2-517-VCM-F-B RFM2-517-36-VCM-F-B 5.00 17U
FINGER STYLE - 7" DEPTH
FITS 30 INCH WIDE CAB FITS 36 INCH WIDE CAB WIDTH RU's
RFM2-752-VCM-F-B RFM2-752-36-VCM-F-B 7.00 52U
RFM2-748-VCM-F-B RFM2-748-36-VCM-F-B 7.00 48U
RFM2-745-VCM-F-B RFM2-745-36-VCM-F-B 7.00 45U
RFM2-742-VCM-F-B RFM2-742-36-VCM-F-B 7.00 42U
RFM2-730-VCM-F-B RFM2-730-36-VCM-F-B 7.00 30U
RFM2-717-VCM-F-B RFM2-717-36-VCM-F-B 7.00 17U

Provides vertical cable management with plastic T-shaped cable guides and openings that align with
each U space in the cabinet to organize patch cords.

• Product Data Sheet


Combination PDU and Cable Lashing Brackets




PART NUMBER WIDTH DESCRIPTION
RFM2-PCM-S-B 3.00 PDU Cable Manager, Single-sided
RFM2-PCM-D-B 5.50 PDU Cable Manager, Double-sided

Unique Combination PDU / Cable Lashing Brackets, can be installed flat or at 90 degrees.

• Product Data Sheet


Vertical Cable Trough




PART NUMBER WIDTH HEIGHT
RFM-659-VCT 6.00 59.00
RFM-635-VCT 6.00 35.00
RFM-459-VCT 4.00 59.00
RFM-435-VCT 4.00 35.00

Supports slack cable, installs flat onto rail guides.

• Product Data Sheet
D-Ring




PART NUMBER DEPTH WIDTH (ADJ)
RFM-DR-ADJ 3.25 4.75 - 8.25

Supports Slack Cables: Adjustable width, installs onto vertical cable management.

• Product Data Sheet


Vertical and Horizontal Grounding Bars








CABINET GROUNDING BARS - VERTICAL MNT.
PART NUMBER WIDTH FITS
RFM2-GB-UNI 1.00 52U, 48U, 45U
RFM2-GB-42 1.00 42U
RFM2-GB-30 1.00 30U
RFM2-GB-17 1.00 17U


RACK GROUNDING BARS - VERTICAL MNT.
PART NUMBER WIDTH FITS
RFM-GBR-UNI 1.00 48U, 44U
RFM-GBR-38 1.00 38U
RFM-GBR-24 1.00 24U


GROUNDING BARS - HORIZONTAL MOUNT
PART NUMBER WIDTH FITS
RFM-HGB-19 1.00 19" EIA


THREADED INSULATOR KIT FOR CABINET GB
PART NUMBER QTY. USE WITH
RFM-GB-4-ISOKIT 4 GB-UNI / GB-42
RFM-GB-3-ISOKIT 3 GB-30
RFM-GB-2-ISOKIT 2 GB-17
THREADED INSULATOR KIT FOR RACK GBR
PART NUMBER QTY. USE WITH
RFM-GB-3-ISOKIT 3 GBR-UNI
RFM-GB-3-ISOKIT 3 GBR-38
RFM-GB-2-ISOKIT 2 GBR-24
Grounding bars for both RFM2 Cabinets or RFM Racks. Isolator kits also listed.

• Product Spec Sheet


Aluminum Lacing Bar




PART NUMBER WIDTH HEIGHT FITS WITH
RFM-ALB-77 1.00 73.75 45U, 48U, 52U

Aluminum lacing bar for securing cable slack.

ACCESSORIES FOR CABINETS

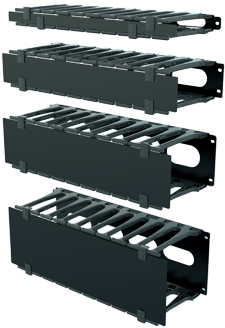

Finger Style Cable Managers - Horizontal




PART NUMBER DEPTH RU'S
RFM2-191-HCM-F 4.38 1U
RFM2-192-HCM-F 4.38 2U
RFM2-193-HCM-F 4.38 3U

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers
are available in 1U, 2U, and 3U spacing and feature removable door.
Cable Managers - Horizontal




PART NUMBER DEPTH RU'S
RFM-191D-HCM 2.40 1U
RFM-192D-HCM-TD 2.40 2U
RFM-194D-HCM-TD 2.40 4U

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers
are available in 1U, 2U, and 4U spacing and feature removable door.

• Product Data Sheet


Finger Style Cable Managers - Horizontal






PART NUMBER DEPTH RU'S
RFM-191D-HCM-F 3.00 1U
RFM-192D-HCM-F 3.00 2U

Manage all of your network cabling neatly, regardless of cable volumes. These fingered
horizontal managers are available in 1U and 2U spacing and feature removable door.

• Product Data Sheet


Cable Managers - Horizontal







PART NUMBER DEPTH
RFM-0U-HCM-19 3.00
RFM-0U-HCM-19-5 5.00

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal
managers are available in 3" and 5" depths.

• Product Data Sheet
Front to Back Cable Trough






PART NUMBER DEPTH HEIGHT
RFM2-FTB-1831-B 3.00 73.75

• Product Data Sheet

Overhead Horizontal Cable Trough For RFM2 Cabinets: High Density




PART NUMBER FITS DESCRIPTION
RFM2-HCT-30-12 30" WIDE CABINET CABLE TROUGH
RFM2-HCT-24-12 24" WIDE CABINET CABLE TROUGH
RFM2-J-0 RFM2-HCT-XX-12 JOINER (PAIR)
RFM2-HCTE-C-12 RFM2-HCT-XX-12 END CAP
Manage all of your network cabling neatly, regardless of cable volumes.
12" Depth HCT for RFM2 Cabinets. Cable trough joiner sold in pairs.
Cabinet Shelf: 4 Point Rack Mounting






PART NUMBER ADJ. MOUNT DEPTH LOAD CAPACITY
RFM-1726-CFS-4 6.00 ~ 33.475 200LBS
RFM-1719-CFS-4 6.00 ~ 26.625 200LBS
RFM-1716-CFS-4* 6.00 ~ 23.625 200LBS

Shelf Fits: Cabinets and Four Post Racks. 19" EIA Rack Mount.

* RFM-1716-CFS-4 is non-vented.

• Product Data Sheet
Cabinet Shelf: 4 Point Rack Mounting






PART NUMBER ADJ. MOUNT DEPTH LOAD CAPACITY
RFM-2440-CFS-4 23.75 - 45.50 400LBS

Shelf Fits: Cabinets and Four Post Racks. 19" EIA Rack Mount.

• Product Data Sheet
Cabinet Shelf: 4 Point Rack Mounting, Retractable






PART NUMBER WIDTH DEPTH LOAD CAPACITY
RFM-1726-CRS-4-1U 17.00 26.00 100LBS

Fully Extendable/Retracable Shelf. 19" EIA Rack Mount.

• Product Data Sheet
Air Dam Kit




36" WIDE CABINET 30" WIDE CABINET 24" WIDE CABINET RU's
RFM2-ADK-3652-B RFM2-ADK-3052-B RFM2-ADK-2452-B 52U
RFM2-ADK-3648-B RFM2-ADK-3048-B RFM2-ADK-2448-B 48U
RFM2-ADK-3645-B RFM2-ADK-3045-B RFM2-ADK-2445-B 45U
RFM2-ADK-3642-B RFM2-ADK-3042-B RFM2-ADK-2442-B 42U
RFM2-ADK-3630-B RFM2-ADK-3030-B RFM2-ADK-2430-B 30U
RFM2-ADK-3617-B RFM2-ADK-3017-B RFM2-ADK-2417-B 17U

The Air Dam Kit attaches to the front mounting rails, providing a complete seal around
mounted equipment, ensuring complete airflow isolation and eliminating bypass airflow.
The Air Dam Kit also provides seals above and below mounted equipment.

Brush Covers QTY FITS
RFM2-ADBK 8 RFM2-ADK-30xx-B
RFM2-ADK-36xx-B

Set of 8 brush covers that conceal cable opening in the equipment mounting rails to block airflow around equipment.

• RFM2-ADK Product Data Sheet
• RFM2-ADBK Product Data Sheet
Exhaust Fans 4"




PART NUMBER FANS TOTAL AIRFLOW FITS*
RFM2-2-FAN-CAB 2 220 CFM 36"W, 30"W and 24"W CABINETS
RFM2-4-FAN-CAB 4 440 CFM 36"W, 30"W and 24"W CABINETS

*This item is for RFM2 Cabinets only.

115VAC 50/60HZ 24/22W (Standard per each unit)
  (230VAC 50/60HZ available upon request).

Casters




PART NUMBER DEPTH FITS*
RFM2-2C-B-30 2.5 30" W CABINET
RFM2-2C-B-24 2.5 24" W CABINET

*This item is for RFM2 Cabinets only.

Jumper Kit




PART NUMBER LENGTH WIRE
RFM-JK-60 60" (1.54M) 6 AWG
Kit assembly consists of:
• 6 Awg Wire
• 60” Cable Length (1.54 M)
• includes (1x) 1/4-20 Keps Nut
• includes (1x) #10-32 Keps Nut
• Crimped One End: 1/4” Lug Connector
(45 Degree Angle, 2 Eye Holes)


• Product Spec Sheet
Hardware Package




PART NUMBER DESCRIPTION
RFM-CN Qty 24 x 1/4-20 Cage Nuts and 3/4” Screws
RFM-CN100 Qty 96 x 1/4-20 Cage Nuts and 3/4” Screws
RFM-CN10-32 Qty 24 x #10-32 Cage Nuts and 1/2” Screws
RFM-CN 10-32100 Qty 96 x #10-32 Cage Nuts and 1/2” Screws
RFM-10-32 Qty 100 x #10-32 x 1/2" Screws
RFM-GK Ganging Kit includes:
• Qty 4 x 5/16-18 x 1" Hex Head Bolt
• Qty 4 x 5/16-18 Keps Nut
• Qty 4 x 5/16" Flat Washer
