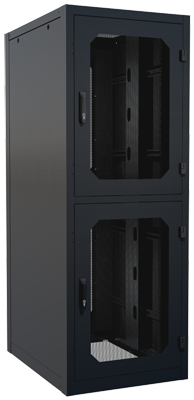

Colocation Cabinet







R. F. Mote Colocation cabinets are available in 2, 3, and 4 compartments. Typical configuration includes: Lockable Perforated Front And Rear Doors, Combination Locks, 2 Solid Side Panels,
4 Mounting Angles (Cage Nut Style) provided for each compartment, and Hardware Pkg. (c/w 12 Cage-Nuts & Screws) provided for each compartment.

Product Resources




* LOAD CAPACITY: up to 2500LBS

Pre-Config CoLocation Cabinet Incl:
• Lockable Perforated Front And Rear Doors
• Combination Locks Standard
• 2 Solid Side Panels
• 4 Mounting Angles (Cage Nut Style) provided for each compartment
• Hardware Pkg. (c/w 12 Cage-Nuts & Screws) provided for each compartment


Pre-Configured Colocation Cabinet




CONFIGURED CABINET
PART NUMBER WIDTH DEPTH HEIGHT UNITS RU's (UNIT)
RFM-COLO-219 24.00 36.150 83.00 (44U) 2 21U
RFM-COLO-319 24.00 36.150 83.00 (44U) 3 13U
RFM-COLO-419 24.00 36.150 83.00 (44U) 4 10U
RFM-COLO-219-2442 24.00 42.150 83.00 (44U) 2 21U
RFM-COLO-319-2442 24.00 42.150 83.00 (44U) 3 13U
RFM-COLO-419-2442 24.00 42.150 83.00 (44U) 4 10U
RFM-COLO-219-3036 30.00 36.150 83.00 (44U) 2 21U
RFM-COLO-319-3036 30.00 36.150 83.00 (44U) 3 13U
RFM-COLO-419-3036 30.00 36.150 83.00 (44U) 4 10U
RFM-COLO-219-3042 30.00 42.150 83.00 (44U) 2 21U
RFM-COLO-319-3042 30.00 42.150 83.00 (44U) 3 13U
RFM-COLO-419-3042 30.00 42.150 83.00 (44U) 4 10U


RFM Colocation Cabinets provide a sturdy, cost-effective solution for supporting rack-mount network, computer server
and data storage equipment in data centers, computer equipment rooms and other IT facilities.
COLOCATION FAN
PART NUMBER # OF FANS DESCRIPTION
RFM-COLO-FAN 2 Dual Fan Kit for Colo Cabinet (Attaches to Rear Door)
ACCESSORIES FOR CABINETS
Finger Style Cable Managers - Horizontal




PART NUMBER DEPTH RU'S
RFM2-191-HCM-F 4.38 1U
RFM2-192-HCM-F 4.38 2U
RFM2-193-HCM-F 4.38 3U

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers
are available in 1U, 2U, and 3U spacing and feature removable door.
Cable Managers - Horizontal




PART NUMBER DEPTH RU'S
RFM-191D-HCM 2.40 1U
RFM-192D-HCM-TD 2.40 2U
RFM-194D-HCM-TD 2.40 4U

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers
are available in 1U, 2U, and 4U spacing and feature removable door.

• Product Data Sheet


Finger Style Cable Managers - Horizontal






PART NUMBER DEPTH RU'S
RFM-191D-HCM-F 3.00 1U
RFM-192D-HCM-F 3.00 2U

Manage all of your network cabling neatly, regardless of cable volumes. These fingered
horizontal managers are available in 1U and 2U spacing and feature removable door.

• Product Data Sheet


Cable Managers - Horizontal







PART NUMBER DEPTH
RFM-0U-HCM-19 3.00
RFM-0U-HCM-19-5 5.00

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal
managers are available in 3" and 5" depths.

• Product Data Sheet
Cabinet Shelf: 4 Point Rack Mounting






PART NUMBER ADJ. MOUNT DEPTH LOAD CAPACITY
RFM-1726-CFS-4 6.00 ~ 33.475 200LBS
RFM-1719-CFS-4 6.00 ~ 26.625 200LBS
RFM-1716-CFS-4* 6.00 ~ 23.625 200LBS

Shelf Fits: Cabinets and Four Post Racks. 19" EIA Rack Mount.

* RFM-1716-CFS-4 is non-vented.

• Product Data Sheet
Cabinet Shelf: 4 Point Rack Mounting






PART NUMBER ADJ. MOUNT DEPTH LOAD CAPACITY
RFM-2440-CFS-4 23.75 - 45.50 400LBS

Shelf Fits: Cabinets and Four Post Racks. 19" EIA Rack Mount.

• Product Data Sheet
Cabinet Shelf: 4 Point Rack Mounting, Retractable






PART NUMBER WIDTH DEPTH LOAD CAPACITY
RFM-1726-CRS-4-1U 17.00 26.00 100LBS

Fully Extendable/Retracable Shelf. 19" EIA Rack Mount.

• Product Data Sheet
Hardware Package




PART NUMBER DESCRIPTION
RFM-CN Qty 24 x 1/4-20 Cage Nuts and 3/4” Screws
RFM-CN100 Qty 96 x 1/4-20 Cage Nuts and 3/4” Screws
RFM-CN10-32 Qty 24 x #10-32 Cage Nuts and 1/2” Screws
RFM-CN 10-32100 Qty 96 x #10-32 Cage Nuts and 1/2” Screws
RFM-10-32 Qty 100 x #10-32 x 1/2" Screws
RFM-GK Ganging Kit includes:
• Qty 4 x 5/16-18 x 1" Hex Head Bolt
• Qty 4 x 5/16-18 Keps Nut
• Qty 4 x 5/16" Flat Washer
