Wall Mount, Adjustable, Swing Out Rack (18U)
| PART NUMBER |
HEIGHT | WIDTH | DEPTH | RU's |
| RFM-1918-RWS-ADJ |
35.5 | 21.5 | ADJ. | 18U |
Swing-Out Rack: 19" EIA Mount - Adjustable depth :15.0" to 21.0".
Weight capacity: 150 LBS.
Wall Mount, Adjustable, Fixed Rack (18U)
| PART NUMBER |
HEIGHT | WIDTH | DEPTH | RU's |
| RFM-1918-RWF-ADJ |
35.5 | 21.5 | ADJ. | 18U |
Fixed Mount Rack: 19" EIA Mount - Adjustable depth: 14.0" to 21.0".
Weight capacity: 150 LBS.

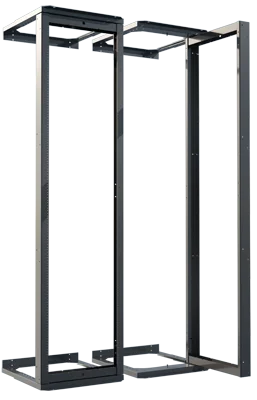

Adjustable, Swing Out Rack (44U & 38U)
| PART NUMBER |
HEIGHT | WIDTH | DEPTH | RU's |
| RFM-1944-RSO-ADJ |
82.75 | 21.50 | ADJ. | 44U |
| RFM-1938-RSO-ADJ |
72.18 | 21.50 | ADJ. | 38U |
Swing-Out Rack -Adj. Depth 15.00" To 27.00" (44U & 38U).
Wall Mount Bracket
| WALL MOUNT BRACKET - HINGED |
|||
| PART NUMBER |
MOUNT | HEIGHT | RU's |
| RFM-1902-HWMB |
19" EIA | 3.50 | 2U |
| RFM-1906-HWMB |
19" EIA | 10.50 | 6U |
| RFM-1906-HWMB-22 |
19" EIA | 10.50 | 6U |
| RFM-1909-HWMB |
19" EIA | 15.75 | 9U |
| RFM-1911-HWMB-22 |
19" EIA | 19.25 | 11U |
| WALL MOUNT BRACKET - FIXED |
|||
| PART NUMBER |
MOUNT | HEIGHT | RU's |
| RFM-1904-WMB |
19" EIA | 7.00 | 4U |
| RFM-1906-WMB |
19" EIA | 10.50 | 6U |
| RFM-1906-WMB-22 |
19" EIA | 10.50 | 6U |
| RFM-1909-WMB |
19" EIA | 15.75 | 9U |
| RFM-1911-WMB-22 |
19" EIA | 19.25 | 11U |
Rails are tapped #10-32 to EIA standard, 19” mounting, cable tie slots provided in side walls.
Ceiling or Wall Mount Bracket
| PART NUMBER |
HEIGHT | WIDTH | DEPTH | RU's |
| RFM-CMPB-6U-12 |
6.00 | 19.50 | 12.00 | 6U |
| RFM-CMPB-4U-7 |
6.00 | 19.50 | 7.125 | 4U |
| RFM-CMPB-2U-4 |
6.00 | 19.50 | 4.0 | 2U |
Mounting holes tapped #10-32 to EIA standard, 19” mounting, Mounts to ceiling or wall.
