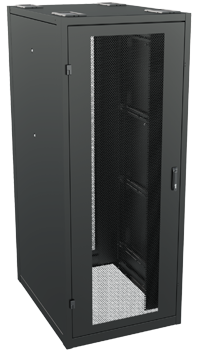

Pre-Configured Series HD 36 UN Cabinet







R. F. Mote HD 36 UN Cabinets are available in varous heights and depths.. Typical configuration includes: Lockable Perforated Front And Rear Doors, Standard Door Locks, 2 Solid Side Panels,
4 Mounting Angles (Cage Nut Style) provided for each compartment, and Hardware Pkg. (c/w 24 Cage-Nuts & Screws).

Product Resources

• Product Data Sheet:[EN][FR]
• Catalogue Page 1.2.9


Pre-Config 36" HD Networking Cabinet Incl:
• Lockable perforated front and rear doors
• Doors: Electronic and Combination lock options available
• 2 Solid, lockable, lift off side panels
• 2 Pair mnt. rails, std. 19” EIA universal spacing for cage nuts
• 4 Grounding points
• Top c/w cable access openings (cover plates provided)
• Hardware pkg.
• Adjustable levelling feet
• Durable textured powder coated finish
• Standard colour is all black
• Custom colours and sizes available upon request



• UL 2416 Listed
• UL Rated for up to 3000 LBS Static Load

Pre-Configured Series HD 36 UN Cabinet




CONFIGURED CABINET
PART NUMBER WIDTH DEPTH HEIGHT RU's
RFM-364290-UN-19 36.150 42.150 90.00 48U
RFM-364283-UN-19 36.150 42.150 83.00 44U
RFM-364890-UN-19 36.150 46.150 90.00 48U
RFM-364883-UN-19 36.150 46.150 83.00 44U
RFM Pre-Configured HD 36 UN Cabinets provide a sturdy, cost-effective solution for supporting rack-mount network,
computer server and data storage equipment in data centers, computer equipment rooms and other IT facilities.
OPTIONS FOR CABINETS
Cable Manager for RFM Series HD 36 Cabinets





PART NUMBER DEPTH WIDTH INSTALLS ONTO
RFM-783-VCM-HD-36 7.00 6.250 36"W CABINET - 44U
RFM-790-VCM-HD-36 7.00 6.250 36"W CABINET - 48U
note: fits RFM Series HD 36 Network Cabinets only.
ACCESSORIES FOR CABINETS
Finger Style Cable Managers - Horizontal




PART NUMBER DEPTH RU'S
RFM2-191-HCM-F 4.38 1U
RFM2-192-HCM-F 4.38 2U
RFM2-193-HCM-F 4.38 3U

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers
are available in 1U, 2U, and 3U spacing and feature removable door.
Cable Managers - Horizontal




PART NUMBER DEPTH RU'S
RFM-191D-HCM 2.40 1U
RFM-192D-HCM-TD 2.40 2U
RFM-194D-HCM-TD 2.40 4U

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal managers
are available in 1U, 2U, and 4U spacing and feature removable door.

• Product Data Sheet


Finger Style Cable Managers - Horizontal






PART NUMBER DEPTH RU'S
RFM-191D-HCM-F 3.00 1U
RFM-192D-HCM-F 3.00 2U

Manage all of your network cabling neatly, regardless of cable volumes. These fingered
horizontal managers are available in 1U and 2U spacing and feature removable door.

• Product Data Sheet


Cable Managers - Horizontal







PART NUMBER DEPTH
RFM-0U-HCM-19 3.00
RFM-0U-HCM-19-5 5.00

Manage all of your network cabling neatly, regardless of cable volumes. These horizontal
managers are available in 3" and 5" depths.

• Product Data Sheet
Cabinet Shelf: 4 Point Rack Mounting






PART NUMBER ADJ. MOUNT DEPTH LOAD CAPACITY
RFM-1726-CFS-4 6.00 ~ 33.475 200LBS
RFM-1719-CFS-4 6.00 ~ 26.625 200LBS
RFM-1716-CFS-4* 6.00 ~ 23.625 200LBS

Shelf Fits: Cabinets and Four Post Racks. 19" EIA Rack Mount.

* RFM-1716-CFS-4 is non-vented.

• Product Data Sheet
Cabinet Shelf: 4 Point Rack Mounting






PART NUMBER ADJ. MOUNT DEPTH LOAD CAPACITY
RFM-2440-CFS-4 23.75 - 45.50 400LBS

Shelf Fits: Cabinets and Four Post Racks. 19" EIA Rack Mount.

• Product Data Sheet
Cabinet Shelf: 4 Point Rack Mounting, Retractable






PART NUMBER WIDTH DEPTH LOAD CAPACITY
RFM-1726-CRS-4-1U 17.00 26.00 100LBS

Fully Extendable/Retracable Shelf. 19" EIA Rack Mount.

• Product Data Sheet
Hardware Package




PART NUMBER DESCRIPTION
RFM-CN Qty 24 x 1/4-20 Cage Nuts and 3/4” Screws
RFM-CN100 Qty 96 x 1/4-20 Cage Nuts and 3/4” Screws
RFM-CN10-32 Qty 24 x #10-32 Cage Nuts and 1/2” Screws
RFM-CN 10-32100 Qty 96 x #10-32 Cage Nuts and 1/2” Screws
RFM-10-32 Qty 100 x #10-32 x 1/2" Screws
RFM-GK Ganging Kit includes:
• Qty 4 x 5/16-18 x 1" Hex Head Bolt
• Qty 4 x 5/16-18 Keps Nut
• Qty 4 x 5/16" Flat Washer
